SparkFun Photon RedBoard 物聯網 WiFi 微控制器開發板 相容 UNO R3

描述

SparkFun Photon RedBoard 物聯網 WiFi 微控制器開發板 相容 UNO R3

簡而言之，SparkFun Photon RedBoard 物聯網 WiFi 微控制器開發板 是Arduino外形的WiFi /微控制器開發板。它易於使用，功能強大，並且連接到雲。憑藉最佳的支持，潛力和性能，Photon RedBoard為您提供帶有強大的120MHz ARM Cortex M3和內置WiFi連接的物聯網設備。想像一下，將Photon炸成一個Arduino的形狀，同時保持其無線和ARM Cortex M3功能，結果是這個電路板！

SparkFun Photon RedBoard基於P1粒子模塊。每個P1都預裝了Particle操作系統固件並包含其基本雲服務。使用內置天線和uFL連接器，P1使其成為您不必為優化射頻設計而強調的問題。

Photon RedBoard具有您所熟悉和喜愛的所有硬件外設：8個數字I / O引腳，6個模擬輸入，UART，SPI和ARM JTAG連接。我們還打破了SDA，SCL，SCK，MISO，MOSI，SS，DAC和WKP引腳。您可以通過USB或通過桶形插孔為Photon RedBoard供電。板上功率調節器可以處理4.5至15VDC的任何電壓。請務必記住，Photon RedBoard採用Arduino外形，這意味著您可以在該主板上附加許多不同的Arduino 擴展板。請務必首先檢查您的引腳和電壓電平。

• STM32F205 120MHz ARM Cortex M3
• 1MB閃存，128KB RAM
• 單頻2.4GHz IEEE 802.11b / g / n
• 支持高達65Mbit / s的無線數據速率
• 超低功耗睡眠，待機和停止模式
• 支持開放式，WEP，WAPI，WPA和WPA2-PSK WiFi安全模式
• 輸入電壓 – 4.5-15V
• 8個數字I / O引腳
• 6個模擬輸入
• ARM JTAG連接
• Arduino外形

技術文件與資源下載

• 概要
• 鷹文件
• 連接指南
• 數據表（P1粒子模塊）
• GitHub（設計文件）
• 圖形數據表

SparkFun Photon RedBoard 物聯網 WiFi 微控制器開發板 是過空中無線可編程無線開發板，其與兼容 Particle Photon 。Photon RedBoard的核心是Particle的P1模塊，該模塊將ARM Cortex M3處理器和Broadcom WiFi控制器整合到一個芯片中。I / O，USB和電源連接器全部按照熟悉的Arduino外形打破。

SparkFun Photon RedBoard



SparkFun Photon RedBoard

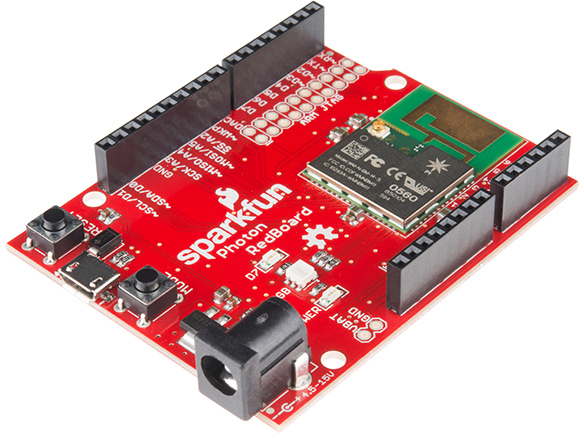

The SparkFun Photon RedBoard, to put it simply, is a WiFi/Microcontroller development board in the Arduino form-factor for the Photon. It’s easy to use, it’s powerful, and it’s connected to the cloud. With the best support, potential, and performance the Photon RedBoard provides you with an IoT device with a powerful 120MHz ARM Cortex M3 and built-in WiFi connectivity. Imagine blowing up a Photon into the shape of an Arduino and while keeping its wireless and ARM Cortex M3 capabilities, the result is this board!

The SparkFun Photon RedBoard has been based around the P1 Particle Module. Each P1 comes pre-loaded with Particle OS firmware and includes their basic cloud service. With a built-in antenna and a uFL connector, the P1 makes it so you don’t have to stress over the optimization of RF designs.

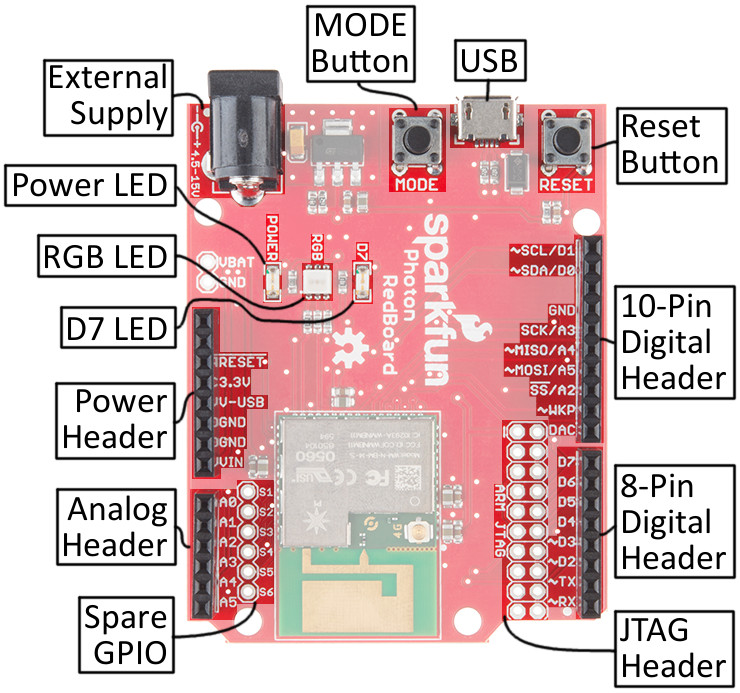

The Photon RedBoard has all of the hardware peripherals you know and love: 8 Digital I/O pins, 6 Analog Inputs, UART, SPI and ARM JTAG hook-ups. We’ve also broken out the SDA, SCL, SCK, MISO, MOSI, SS, DAC, and WKP pins as well. You can power the Photon RedBoard over USB or through the barrel jack. The on-board power regulator can handle anything from 4.5 to 15VDC. It is important to keep in mind that the Photon RedBoard utilizes the Arduino form factor, meaning you can attach many different Arduino shields to this board. Please be sure to check your pin-outs and voltage levels first.

• STM32F205 120MHz ARM Cortex M3
• 1MB flash, 128KB RAM
• Single band 2.4GHz IEEE 802.11b/g/n
• Supports wireless data rates of up to 65Mbit/s
• Ultra low power sleep, stand-by and stop modes
• Supports Open, WEP, WAPI, WPA and WPA2-PSK WiFi security modes
• Input voltage – 4.5-15V
• 8 Digital I/O Pins
• 6 Analog Inputs
• ARM JTAG Hook-up
• Arduino Form Factor
