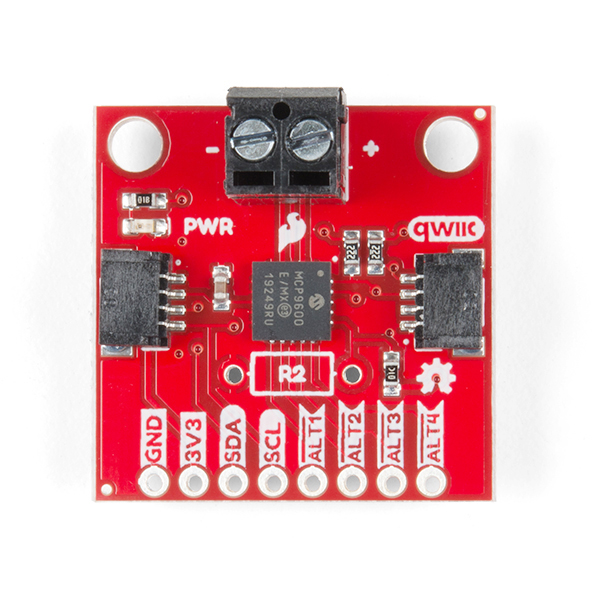

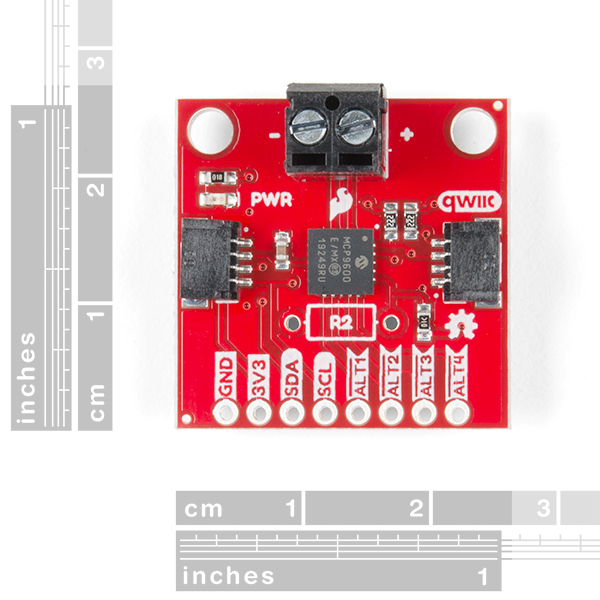

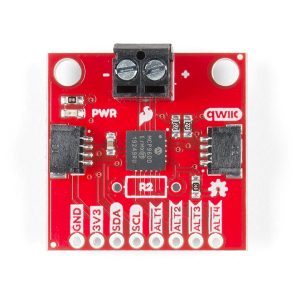

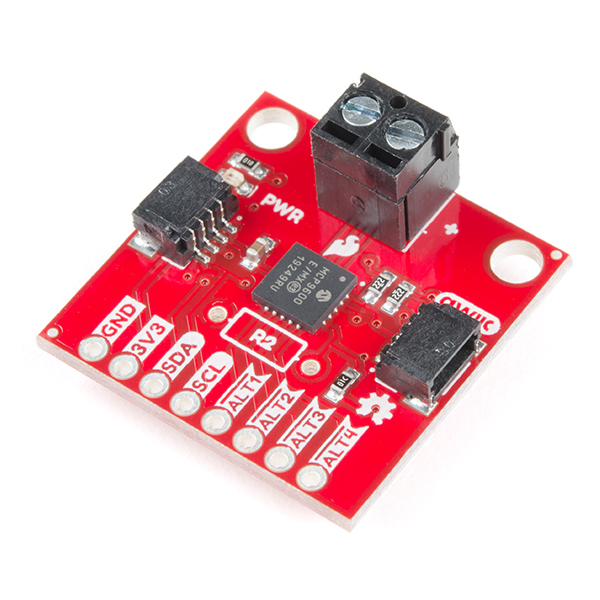

SparkFun Qwiic MCP9600 熱電偶放大器模組 帶螺絲端子

描述

SparkFun Qwiic MCP9600 熱電偶放大器模組 帶螺絲端子

SparkFun Qwiic MCP9600 熱電偶放大器模組 是具有I ² C接口的高精度熱電偶放大器，可通過我們的Qwiic系統進行訪問。芯片內部有兩個溫度傳感器，一個用於熱電偶本身（熱結），另一個用於芯片本身（冷結）。結果，MCP9600既可以讀取環境溫度，也可以讀取您要測量的任何溫度！ SparkFun Qwiic MCP9600 熱電偶放大器模組 的分辨率為0.0625°C，精度為±1.5°C（最壞情況）。MCP9600熱電偶放大器是我們眾多Qwiic兼容板之一！只需即插即用。無需焊接，無需弄清楚哪個是SDA或SCL，也不需要電壓調節或轉換！

SparkFun Qwiic MCP9600 熱電偶放大器模組 的電路板配有螺釘端子，可通過螺釘旋轉將您自己的熱電偶的接線連接起來。這使其非常適合各種應用，從測量Crock-Pot的溫度到確保後院感應爐達到溫度。

SparkFun Qwiic MCP9600 熱電偶放大器模組 具有四個板載溫度警報，您可以對其進行配置！您可以設置溫度限制以在溫度達到一定值時觸發中斷，而不是在I ² C上持續輪詢傳感器。這樣可以釋放您的微控制器和I ² C總線來執行更重要的事情。也可以將MCP9600置於備用工作模式以節省功耗。傳感器支持脈衝串模式，在該模式下它將採集指定數量的樣本，返回結果，然後進入睡眠狀態。這種低功耗模式使MCP9600非常適合便攜式應用！

SparkFun Qwiic MCP9600 熱電偶放大器模組 特色

• 溫度範圍-200°C至1350°C
• 四個板載溫度警報
• 分辨率0.0625°C
• 螺絲端子連接器
• 變量I ² C地址的ADDR跳線（默認地址0x60）
• 2個Qwiic連接器

文件與資源

• 原理圖
• 鷹文件
• 聯播指南
• 數據表（MCP9600）
• Qwiic 資訊頁面
• Arduino函數庫
• GitHub硬件資訊

SparkFun Qwiic Thermocouple Amplifier – MCP9600 (Screw Terminals)

The MCP9600 Breakout is a high accuracy Thermocouple Amplifier equipped with an I²C interface, accessed over our Qwiic system. Inside the chip are two temperature sensors, one for the thermocouple itself (the hot junction) and one for the chip itself (the cold junction). As a result, the MCP9600 can read both the ambient temperature and the temperature of whatever you’re trying to measure! The MCP9600 can do both with a resolution of 0.0625°C, and an accuracy of ±1.5°C (worst-case). The MCP9600 Thermocouple Amplifier is one of our many Qwiic compatible boards! Simply plug and go. No soldering, no figuring out which is SDA or SCL, and no voltage regulation or translation required!

This version of the board comes equipped with screw terminals to allow for your own Thermocouple’s wiring to be hooked up with the turn of a screw. This makes it perfect for a variety of applications, from measuring the temperature of your Crock-Pot to making sure your backyard induction furnace is up to temperature.

In addition, the MCP9600 has four on-board temperature alerts that you can configure! Instead of constantly polling the sensor over I²C, you can set a temperature limit to trigger an interrupt when the temperature reaches a certain value. This frees up your microcontroller and your I²C bus to do more important things. It’s also possible to put the MCP9600 into alternate operation modes in order to save power. The sensor supports a burst mode, where it will take a specified number of samples, return the results, and then go to sleep. This low-power mode makes the MCP9600 perfect for portable applications!

We’ve written an Arduino library to help you get started quickly. You can download the library through the Arduino library manager by searching ‘SparkFun MCP9600’ or you can get the GitHub repo as a .zip file and install the library from there.

Features

• Temperature Range of -200°C to 1350°C
• Four Onboard Temperature Alerts
• Resolution of 0.0625°C
• Screw Terminal Connector

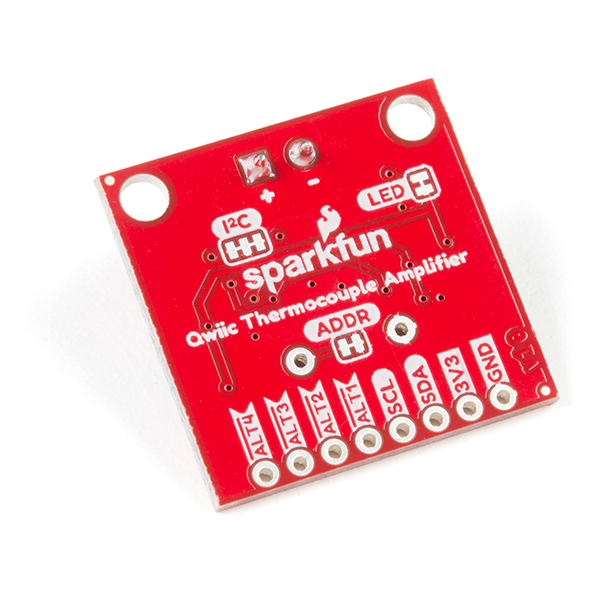

• ADDR Jumper for variable I²C Addresses (default address of 0x60)
• 2x Qwiic Connectors
