SparkFun Qwiic Shield for Arduino / SparkFun Arduino Qwiic 系統 I2C 模組擴展板

SparkFun Qwiic Shield 是一種易於組裝的電路板，它提供了一種將Qwiic Connect系統與基於Arduino的設備相結合的簡單方法。該屏蔽將Arduino上的I ² C總線連接至一系列SparkFun Qwiic連接器，並提供電路將5V給定至我們Qwiic系統中I ² C板所需的3.3V電壓。只要您的設備位於不同的地址，Qwiic系統就可以進行菊花鍊式連接，這意味著您可以堆疊盡可能多的傳感器，因為您希望創建一個感應功率塔！

該 SparkFun Qwiic Shield 有四個Qwiic連接端口，所有同我上² C總線，以及大面積的原型設計和製作自己獨特的電路。屏蔽層還有幾個3×1的導軌來幫助原型設計，以及用於接地的總線，5V甚至3.3V。我們在與Qwiic傳感器相同的設計中包含了四個安裝端口，使您可以將小型板安裝到屏蔽頂部。

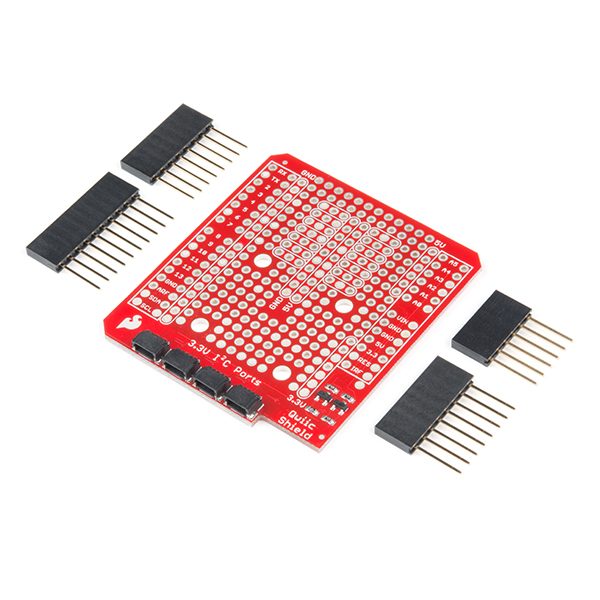

• 針對Arduino的1x SparkFun Qwiic Shield
• 1個Arduino可堆疊接頭套件 – R3
• 4個Qwiic連接端口
• 大型原型區
• 3乘1原型滑軌

SparkFun Qwiic Shield for Arduino

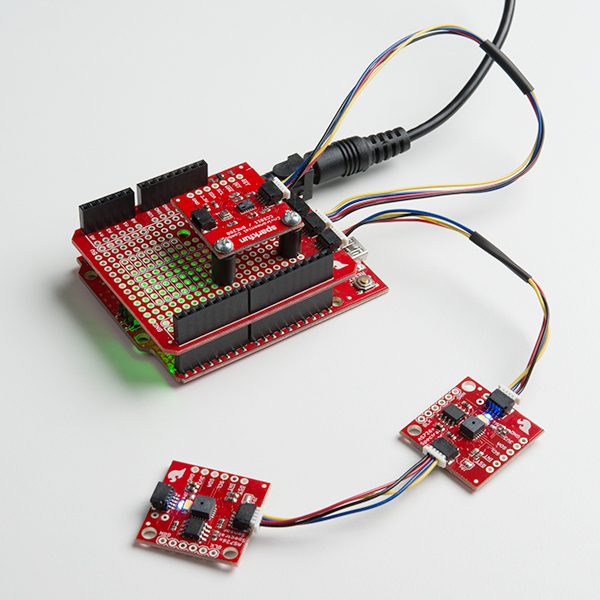

The SparkFun Qwiic Shield is an easy-to-assemble board that provides a simple way to incorporate the Qwiic Connect System with your Arduino-based device. This shield connects the I²C bus on your Arduino to a series of SparkFun Qwiic connectors and provides the circuitry to convert the 5V given to the 3.3V required by I²C boards in our Qwiic system. As long as your devices are on different addresses, the Qwiic system allows for daisy chaining, meaning you can stack as many sensors as you’d like to create a tower of sensing power!

SparkFun Qwiic Shield

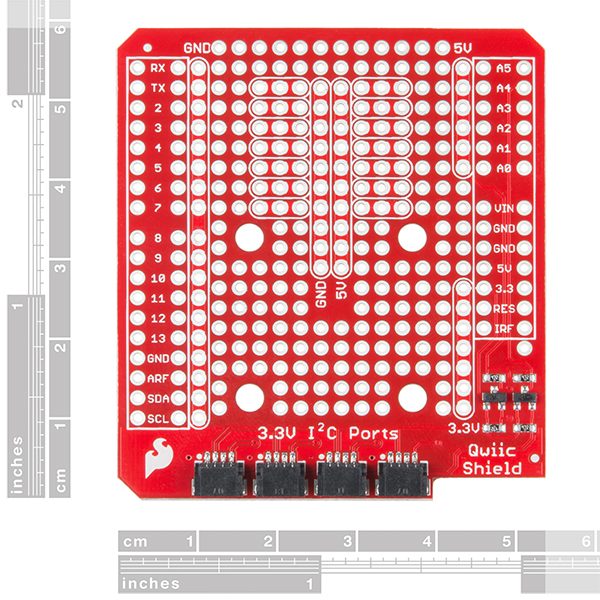

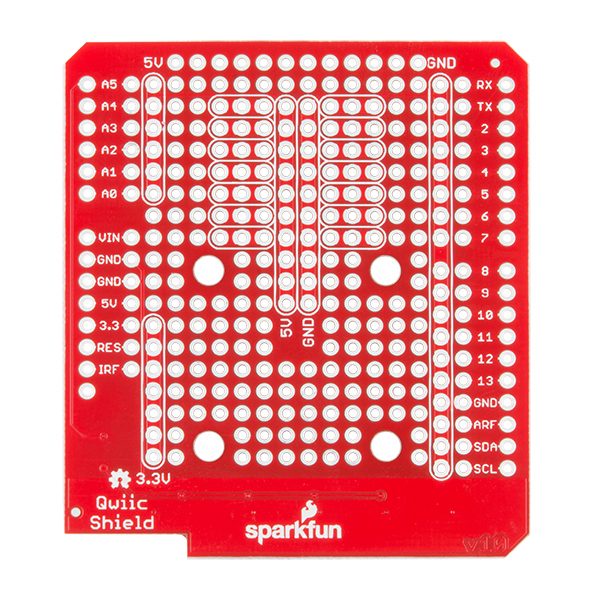

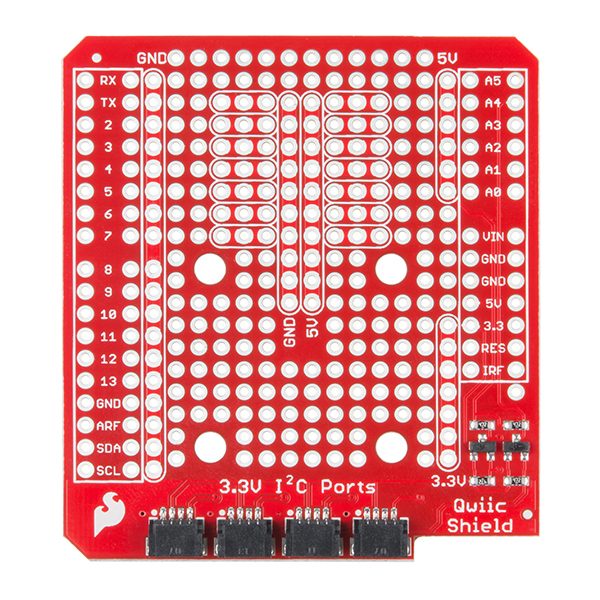

The Qwiic Shield has four Qwiic connection ports, all on the same I²C bus, as well as a large prototyping area to design and make your own unique circuits. The shield also has a few 3-by-1 rails to help with prototyping, as well as buses for ground, 5V and even 3.3V. We have included four mounting ports in the same design as our Qwiic sensors, allowing you to affix your small board to the top of the shield.
