SparkFun XBee Explorer USB XBee USB 適配器 SparkFun 原裝進口

描述

SparkFun XBee Explorer USB /  XBee USB 適配器 SparkFun 原裝進口

簡單易用的USB到Digi XBee線的串口基本單元。本機適用於所有XBee模組，包括 Series 1和 Series 2.5，標準版和專業版。將設備插入 XBee Explorer ，連接迷你USB電纜，您將可以直接訪問XBee設備上的串行和編程引腳。該主板的亮點是FT231X USB轉串口轉換器。這就是您的計算機和XBee之間的數據轉換。還有一個複位按鈕和一個電壓調節器，可以為XBee提供充足的電力。此外，如果您需要調試XBee：RX，TX，RSSI（信號強度指示燈）和電源指示燈，則有四個LED可以提供幫助。

SparkFun XBee Explorer XBee USB 適配器 該主板還將每個XBee的I / O引腳分配給一對麵包板兼容的接頭。所以如果你想利用XBee的擴展功能，你可以將一些插頭引腳焊接到這些引腳上，或者甚至只是焊接一些電線。

SparkFun 原廠文件

• 概要
• Eagel 文件
• X-CTU軟件
• XBee介紹和購買指南
• XBee和X-CTU連接指南
• XBee WiFi連接指南

• GitHub（設計文件）

SparkFun XBee Explorer USB

This is a simple to use, USB to serial base unit for the Digi XBee line. This unit works with all XBee modules including the Series 1 and Series 2.5, standard and Pro version. Plug the unit into the XBee Explorer, attach a mini USB cable, and you will have direct access to the serial and programming pins on the XBee unit.

The highlight of this board is an FT231X USB-to-Serial converter. That’s what translates data between your computer and the XBee. There’s also a reset button, and a voltage regulator to supply the XBee with plenty of power. In addition, there are four LEDs that’ll help if you ever need to debug your XBee: RX, TX, RSSI (signal-strength indicator), and power indicator.

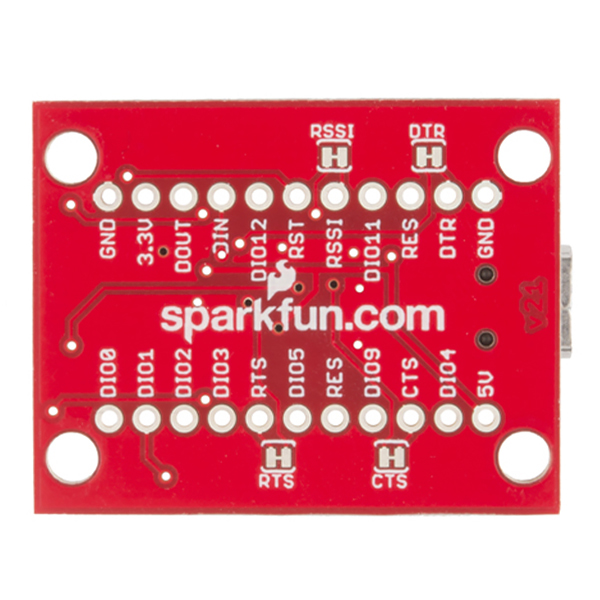

This board also breaks out each of the XBee’s I/O pins to a pair of breadboard-compatible headers. So if you want to make use of the XBee’s extended functionality, you can solder some header pins into those, or even just solder some wire.

Not sure which XBee module or accessory is right for you? Check out our XBee Buying Guide!

Note: There is no XBee included with this Explorer USB. Check the Recommended Productssection below for different options.
