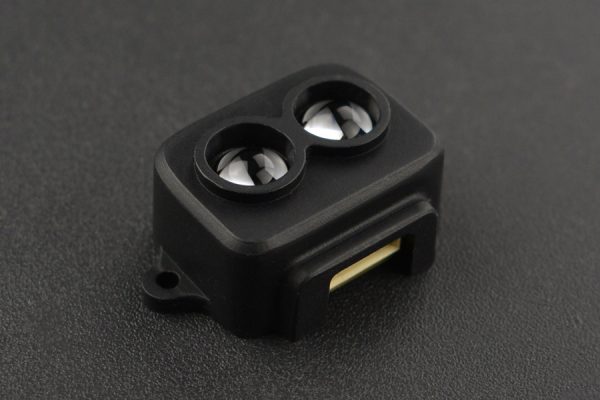

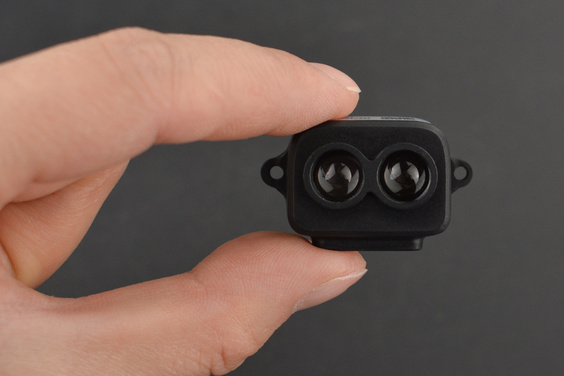

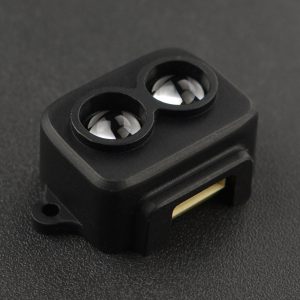

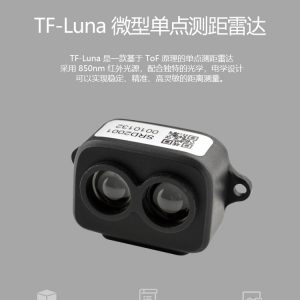

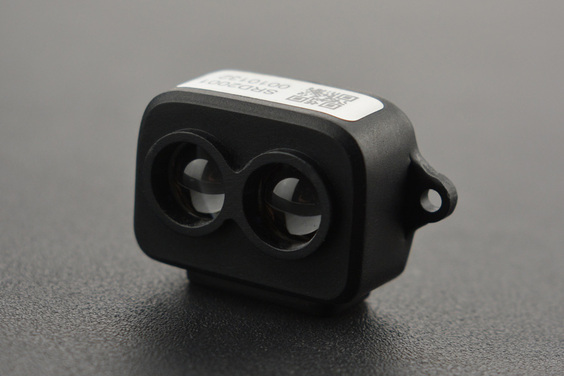

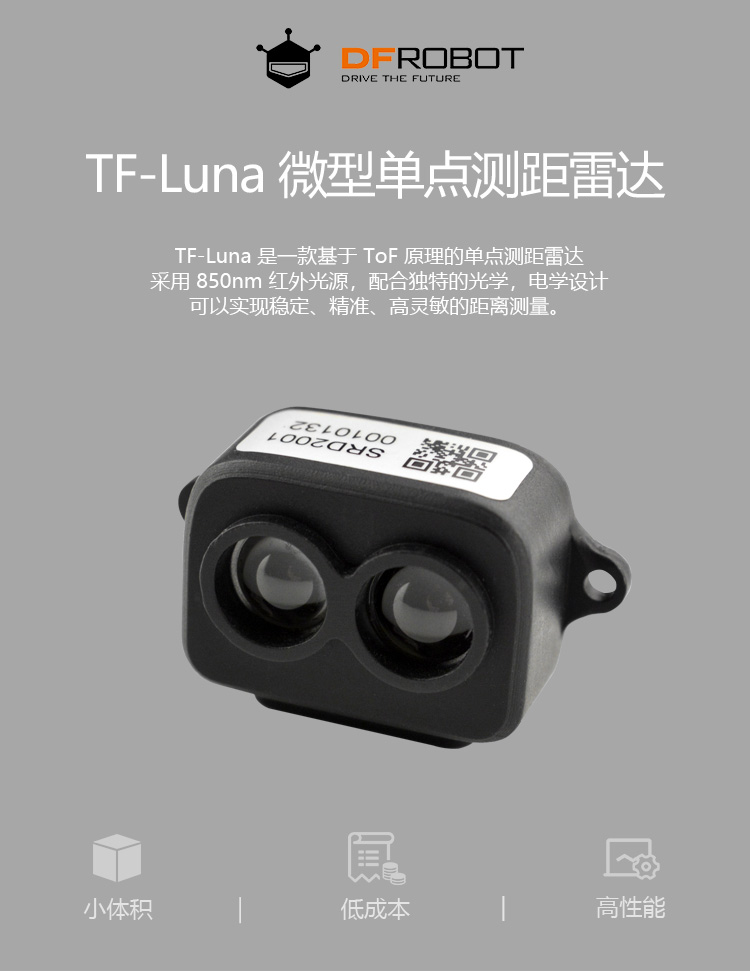

TF-Luna (ToF) 微型單點測距雷達 高精度雷射測距模組
TF-Luna (ToF) 微型單點測距雷達 產品內置多種應用環境及目標的適配演算法,可以保證在複雜環境中具有優良的測距性能。TF-Luna 基於 TOF(Time of Flight)即飛行時間原理。具體為產品週期性的向外發出近紅 外光調製波,調製波遇物體後反射。產品通過測量調製波往返相位差,得到飛行時間,再計算出 產品與被測目標之間的相對距離。
TF-Luna 的測距重複精度與測量時的信號強度值(Amp)及輸出幀率相關,Amp 越大,重 複精度越高,輸出頻率越低,重複精度越高。以測距 1σ 標準差表徵測距重複精度,下面給出了 100Hz 輸出幀率時,不同測試條件下的 1σ 標準差,僅供參考,實際標準差可能受使用環境影 響。
文件與資源
TF-Luna (ToF) Micro Single-point Ranging LiDAR

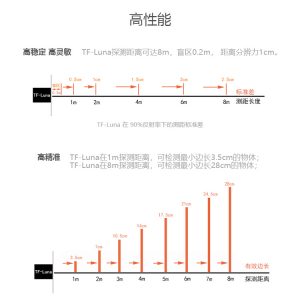

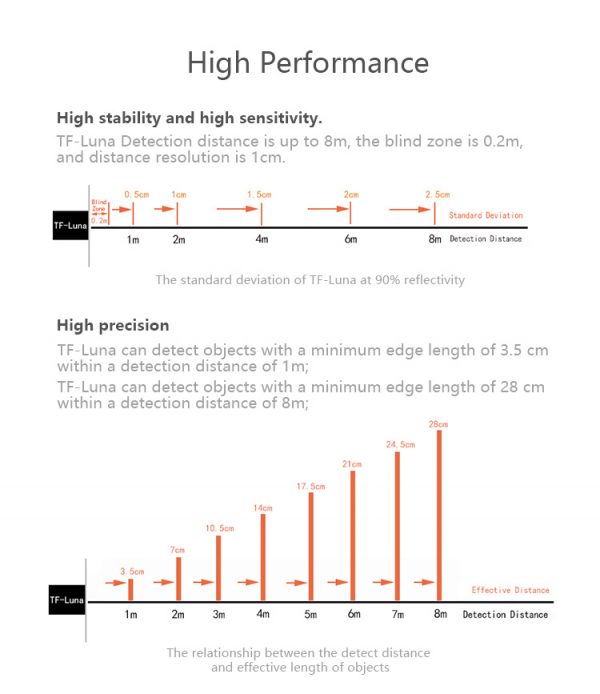

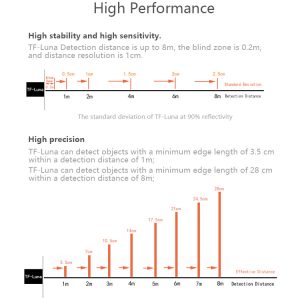

High Performance
High stability and high sensitivity.
TF-Luna Detection distance is up to 8m, the blind zone is 0.2m, and distance resolution is 1cm.

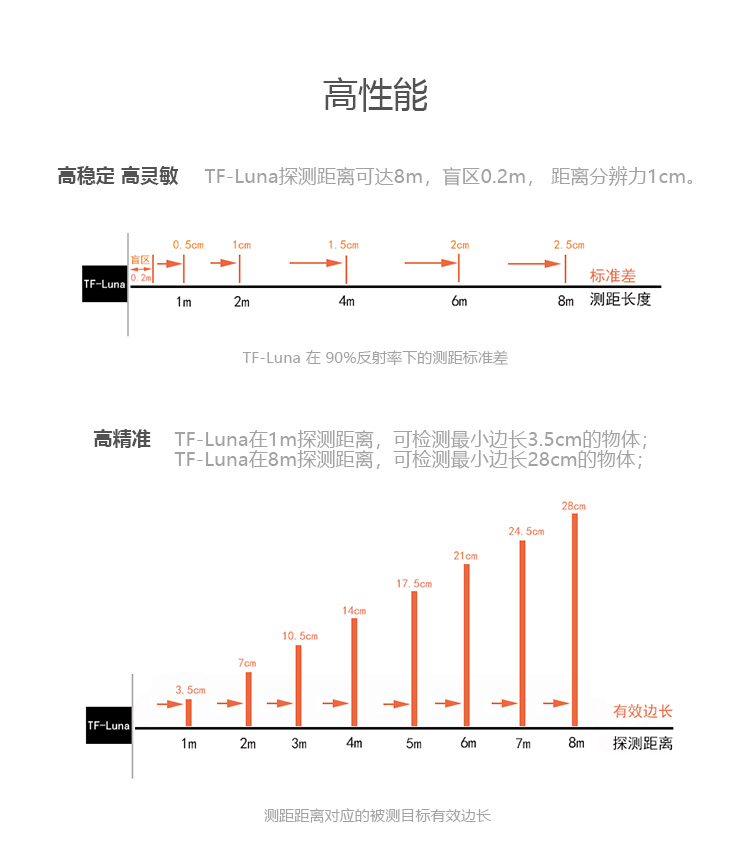

The standard deviation of TF-Luna at 90% reflectivity
High precision
TF-Luna can detect objects with a minimum edge length of 3.5 cm within a detection distance of 1m;
TF-Luna can detect objects with a minimum edge length of 28 cm within a detection distance of 8m;
The relationship between the detect distance and effective length of objects.

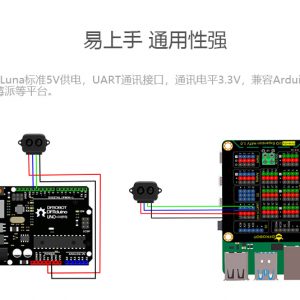

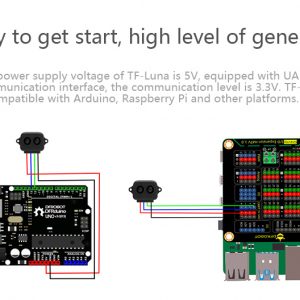

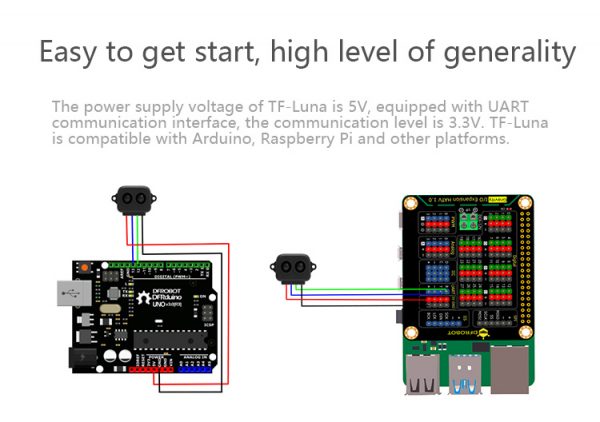

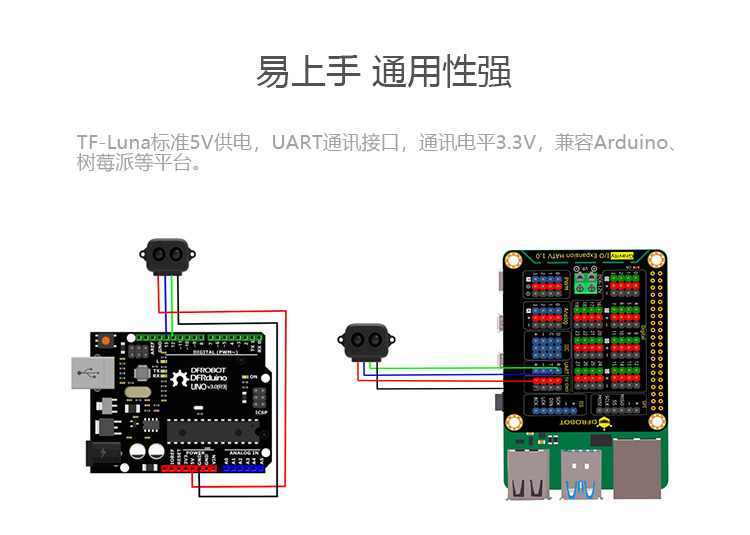

Easy to get start, high level of generality
The power supply voltage of TF-Luna is 5V, equipped with UART communication interface, the communication level is 3.3V. TF-Luna is compatible with Arduino, Raspberry Pi and other platforms.
Application Scenarios
Robot: Robot obstacle avoidance, Robot anti-drop protection
UAV: UAV obstacle avoidance, UAV altitude setting
Smart City: Smart toilets, Smart trash bins
Smart Retail: Smart ad trigger, Smart mirror trigger
Economical
It can be widely applied to many development scenarios

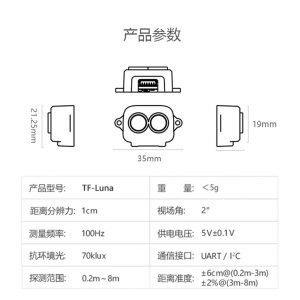

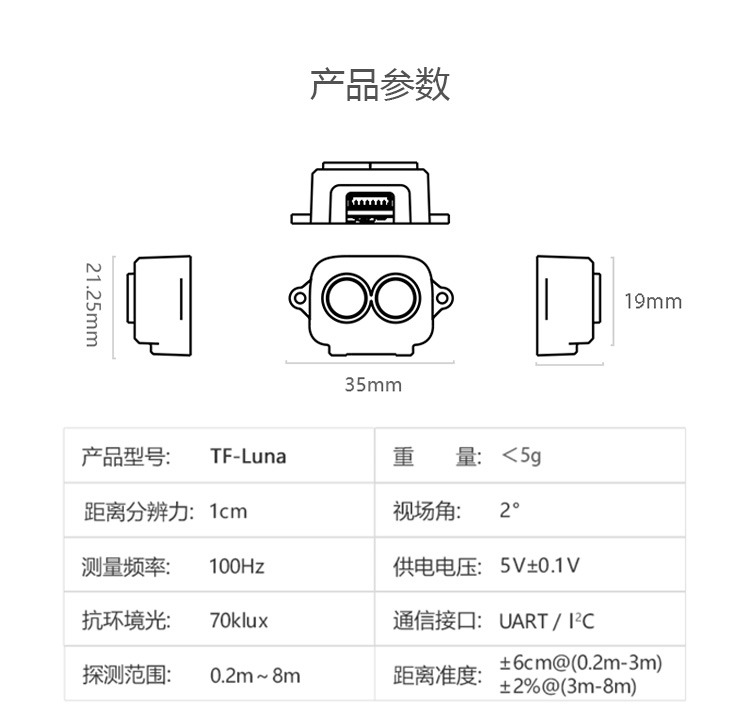

SPECIFICATION
- Distance Resolution: 1cm
- Frequency: 100Hz
- Ambient Light Resistance: 70klux
- Detecting Range: 0.2~8m

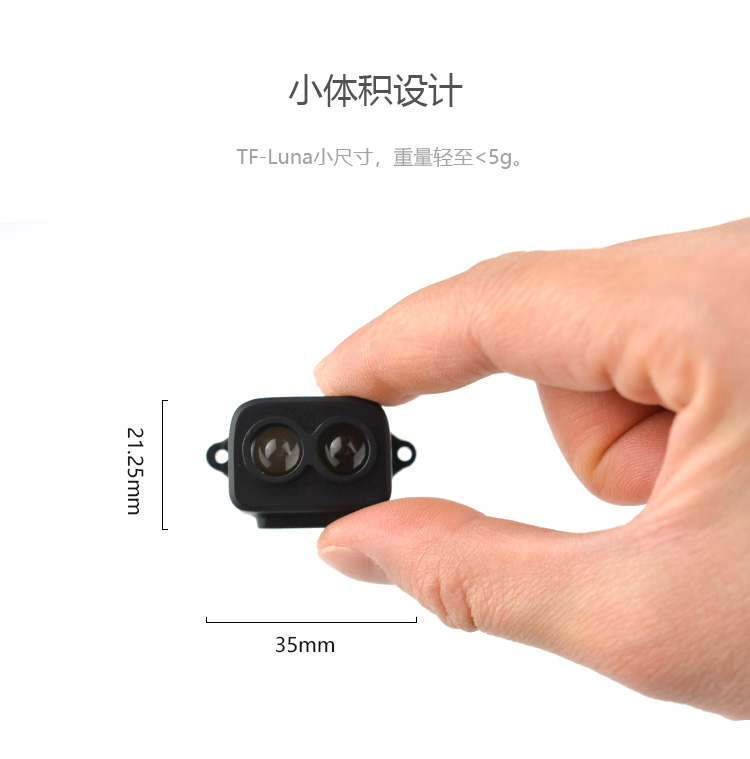

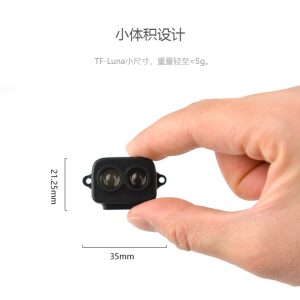

- Weight: <5g
- FoV: 2°
- Supply Voltage: 5V±0.1V
- Data Interface: UART/ I²C
- Accuracy: ±6cm@(0.2m-3m)
DOCUMENTS
