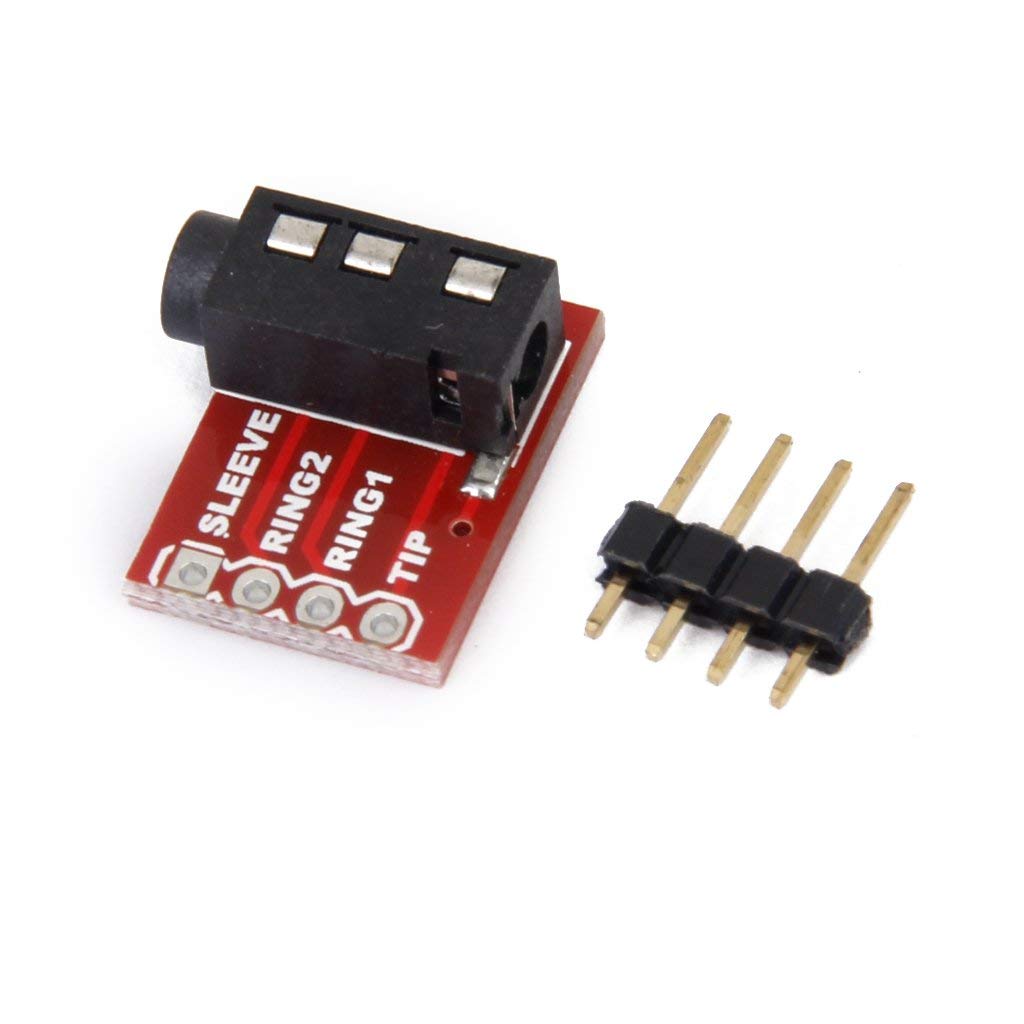

TRRS 3.5mm 連接器 MP3 立體聲耳機視 頻麥克風接口模組 TRRS 3.5mm Jack Breakout

描述

TRRS 3.5mm 連接器 MP3 立體聲耳機視 頻麥克風接口模組 TRRS 3.5mm Jack Breakout

TRRS 3.5mm 連接器 是您在某些手機，MP3 播放器和開發板上看到的音頻連接器。 TRRS 代表“Tip，Ring，Ring，Sleeve”  它反映了這樣一個事實：與標準立體聲連接器不同，它實際上有三根導線和一根地線。有些設備使用額外的導體用於麥克風（如免提耳機）或攜帶視頻信號（如某些MP3 / MP4播放器）。這個分線板可以很容易地將TRRS插孔添加到您的原型或項目中，方法是將每根導線分成標準的0.1英寸間距接頭。

TRRS 3.5mm Jack Breakout

TRRS connectors are the audio-style connectors that you see on some phones, MP3 players and development boards.TRRS stands for “Tip, Ring, Ring, Sleeve,” which reflects the fact that, unlike a standard stereo connector, this actually has three conductors and a ground. Some devices use the extra conductor for a microphone (like hands-free headsets) or to carry a video signal (like in some MP3/MP4 players). This breakout board makes it easy to add a TRRS jack to your prototype or project by breaking out each conductor to a standard 0.1″ spaced header.
