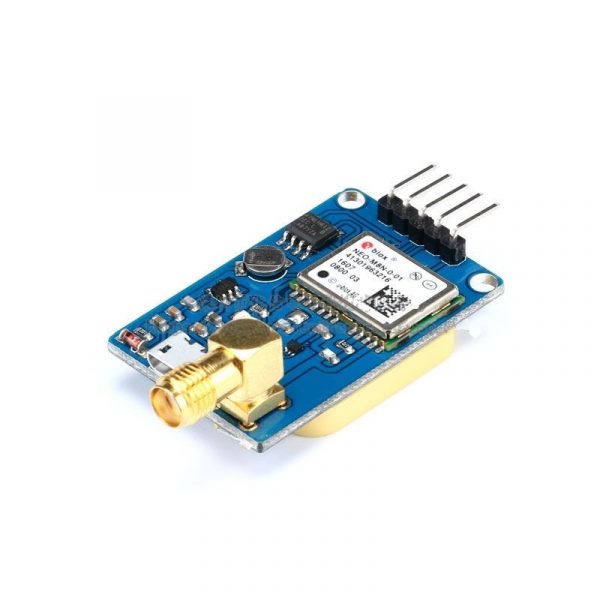

Ublox NEO M8N 高精度GPS導航定位模組 自帶信號放大 支援 Arduino 與 樹莓派
Ublox NEO M8N 高精度GPS導航定位模組 採用 NEO M8系列 多功能 u-blox M8 GNSS模組, 多功能GNSS模塊採用不同型號,易於製造。同時接收最多3個GNSS(GPS,Galileo,GLONASS,BeiDou),業界領先-167 dBm導航靈敏度。安全和完整性保護,支持所有衛星增強系統。先進的干擾和欺騙檢測,產品型號可滿足性能和成本要求,向後兼容NEO-7和NEO-6系列。
Ublox NEO M8N 高精度GPS導航定位模組 特性
- 1、 自帶SMA天線接口,可外接各種有源天線
- 2、自帶EEPROM,可保存配置信息
- 3、自帶可充電後備電池,可以掉電保持星曆數據
- 4、Micro USB接口,只需要一條USB線連接電腦,即可使用上位機軟件,自備串口功能,無需另購其他串口模塊
- 5、兼容5V/3.3V電壓,適應各類單片機
- 6、支持樹莓派,直插USB使用,無需驅動
- 7、獨家附帶GPS修改配置方法,圖文並茂
- 8、支持固件升級
- 9、自帶信號放大器

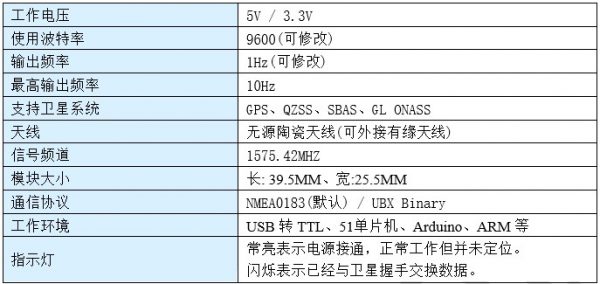

Ublox NEO M8N 高精度GPS導航定位模組 產品參數:

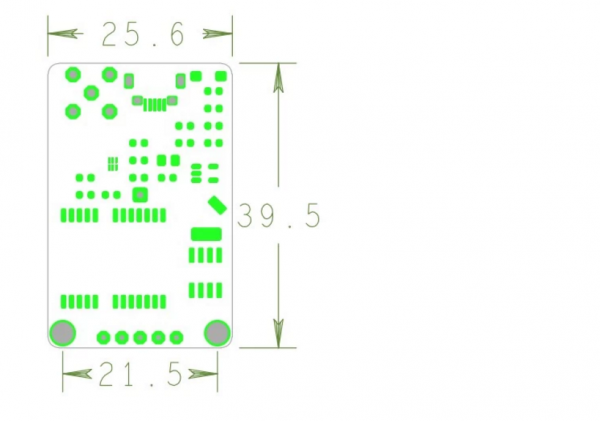

產品尺寸:

定位效果圖:

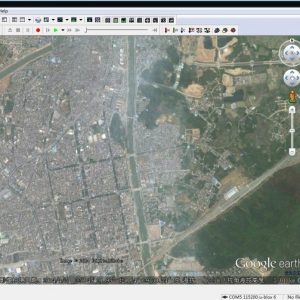

Google 地圖

百度地圖

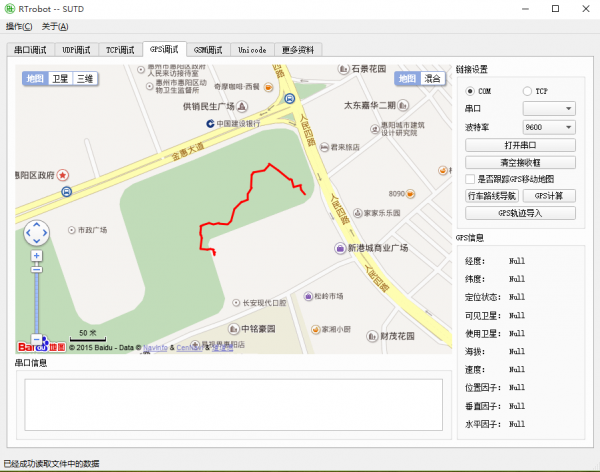

本店開發百度定位,無法訪問谷歌地圖的客戶也可以正常使用:
軟件新增遠程查看GPS坐標功能(TCP傳輸),需配合其他無線傳輸使用。

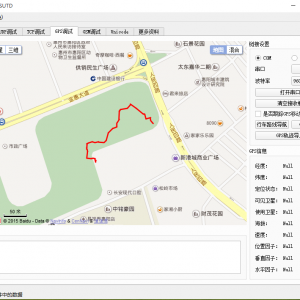

新增簡易導航、軌跡記錄(需要配合TF讀寫模塊使用)。

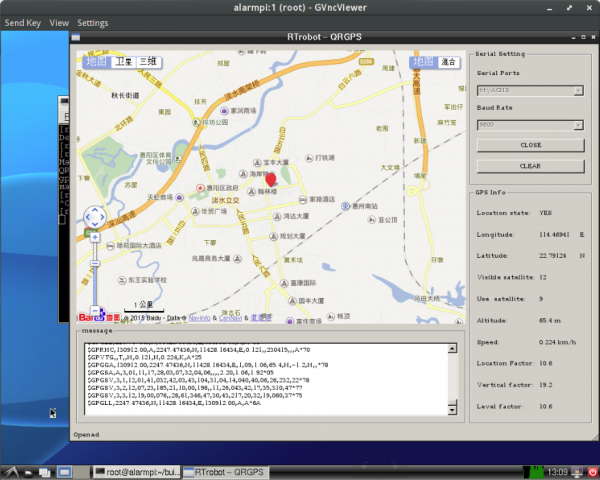

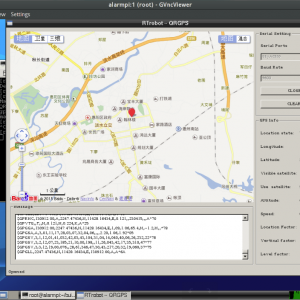

RaspBerry B+應用效果(LXDE、XFCE、純XORG均可以):

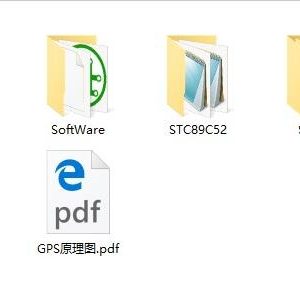

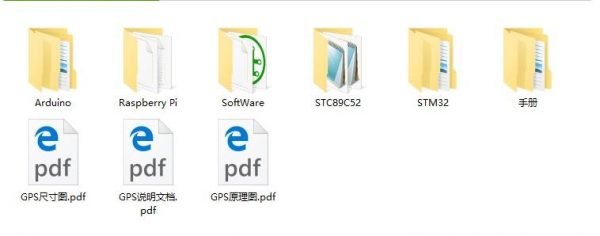

資料截圖:

Ublox-NEO-M8N GPS navigation positioning signal amplification module for arduino Rasppery PI
Product features:
- 1, bringing the SMA antenna interface, can be an external various active antenna Block
- 2, bring their own EEPROM, can save the configuration information
- 3, built-in rechargeable battery back-up, can keep the ephemeris data when power supply drop
- 4, Micro USB port, only need a USB cable to connect computers, can use PC software, bring your own serial port function, don’t need to purchase another serial port Module
- 5, compatible with 5 V / 3.3 V voltage, adapt to all kinds of single chip microcomputer
- 6, support raspberries pie, into the USB is used, do not need to drive
- 7, exclusive with GPS modify configuration method, illustrated
- 8, support the firmware update
- 9, with signal amplifier
Working Voltage: 5V / 3.3V It’s for Arduino , raspberry PI, SMT STC Delveopment boards.
