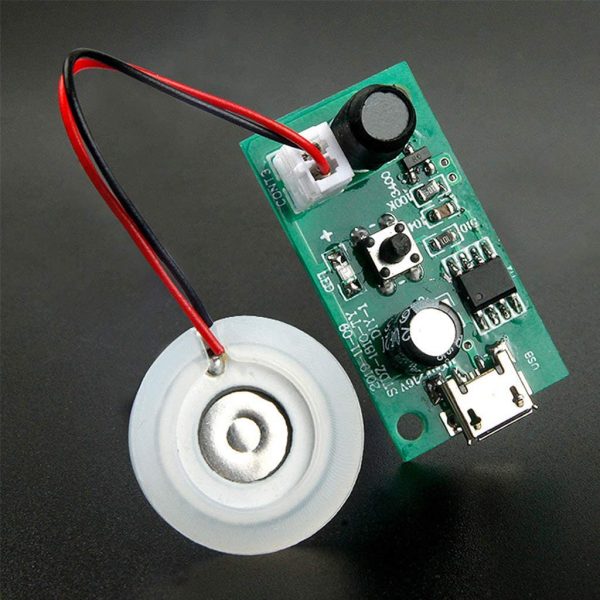

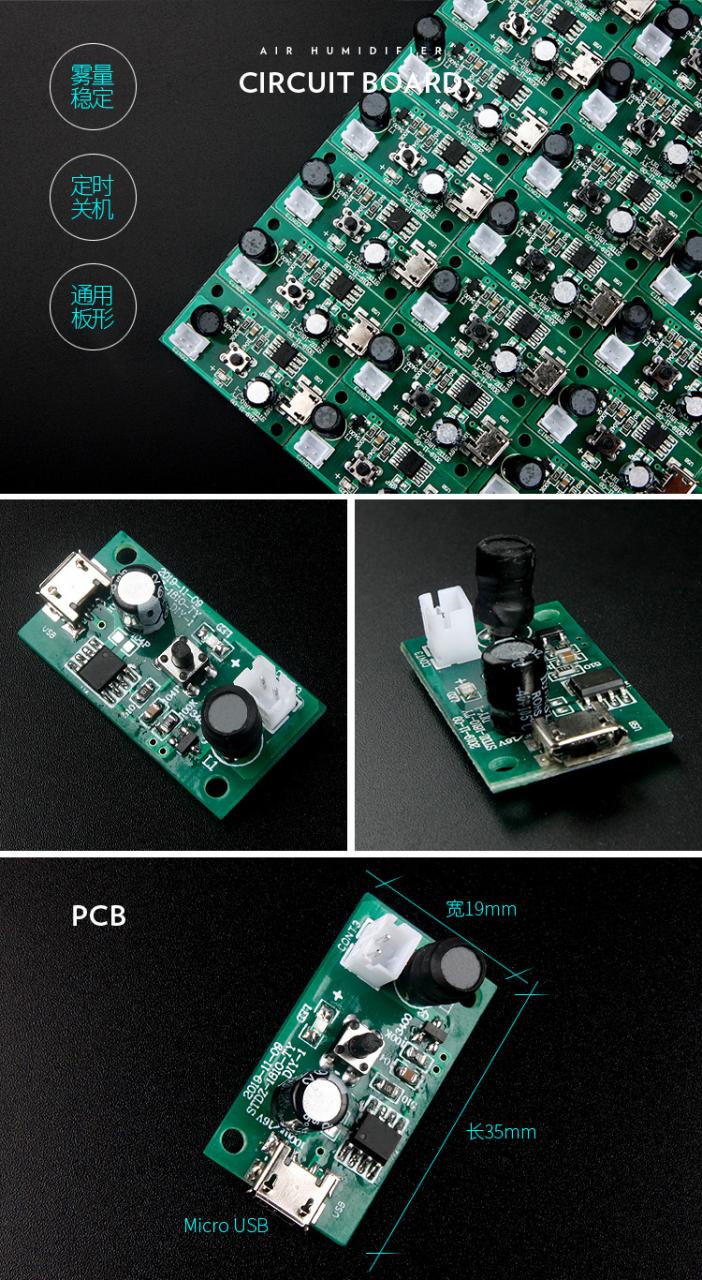

USB 5V 超聲波霧化器模組 線路板霧化片集成電路板 霧化器模組 霧化加濕模組

描述

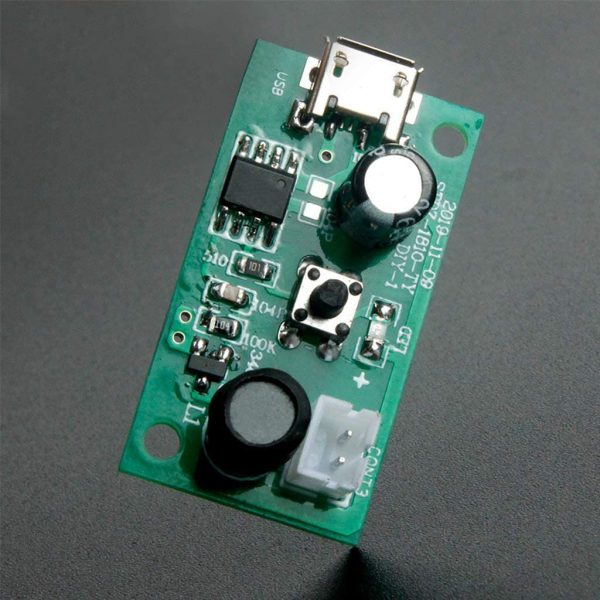

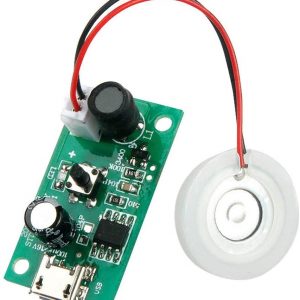

USB 5V 超聲波霧化器模組 線路板霧化片集成電路板 霧化器模組 霧化加濕模組

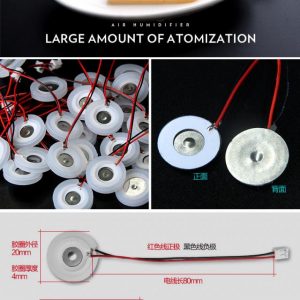

這款 5V USB 超聲波霧化器霧化器也稱為超聲波霧化器，是一種 通過將高頻聲波轉換為機械能並轉移到液體中從而產生駐波來工作的設備。該設備具有 低驅動電壓、低功率、低阻抗、波形穩定、轉換效率高、圓環霧化板、中間噴霧、5um超細噴霧孔徑、740個超密噴霧孔。霧化片表面採用抗氧化銀層保護鍍膜工藝，使用壽命長。它還採用環保電子元件。

規格與特色

• 產品名稱：  5V USB 超聲波霧化器霧化器
• 電壓：DV 5V
• 電流：300mA
• 功率：2W
• 頻率：110KHz

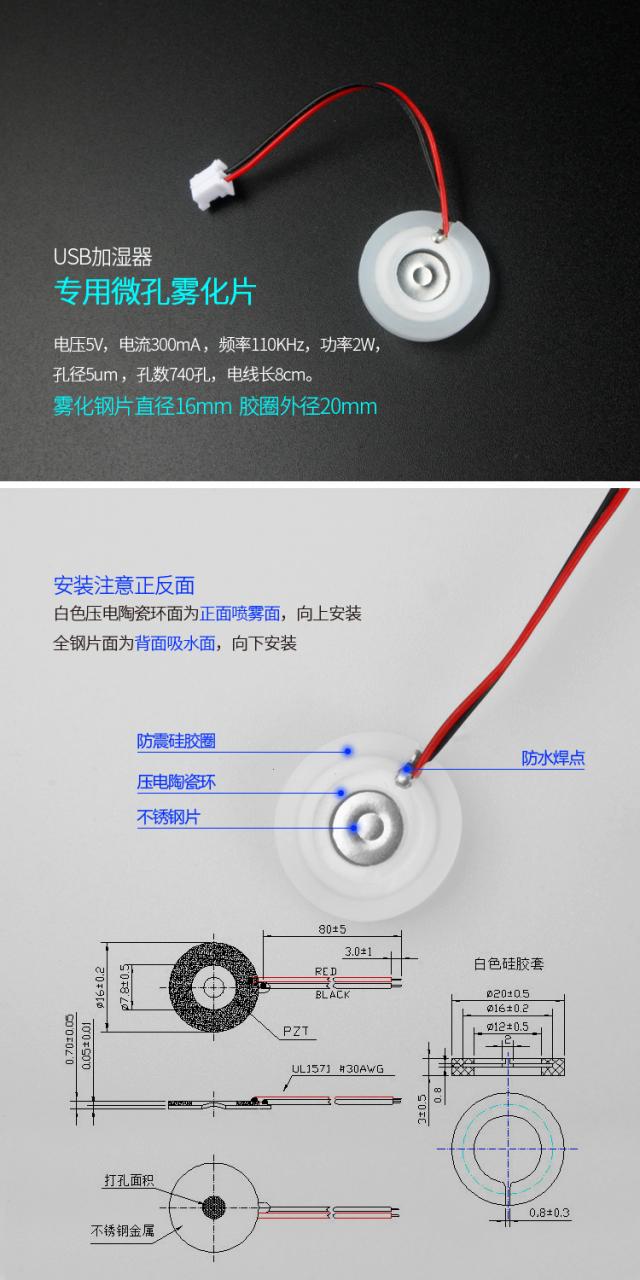

• 鋼板直徑：約16mm
• 矽膠圈外徑：約20mm
• 線長：約8厘米

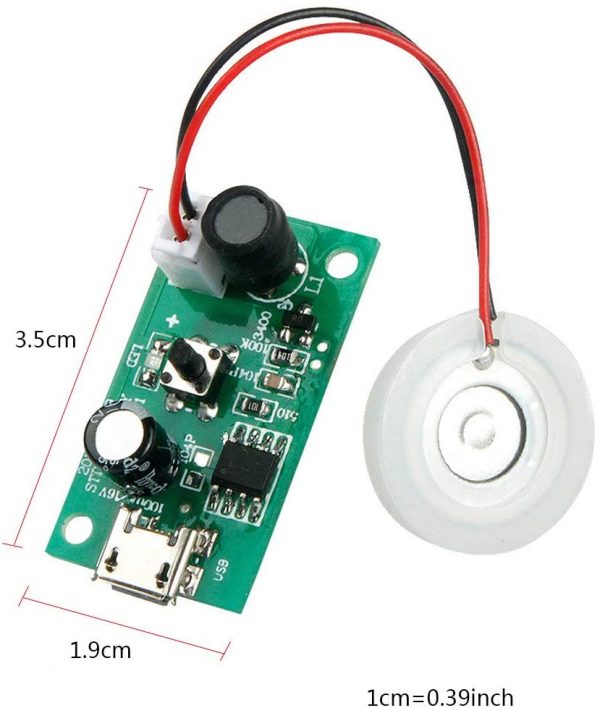

• 尺寸：約 46 *20*17mm/1.81*0.79*0.67″

Arduino 5V USB Ultrasonic Mist Maker Fogger Atomizer

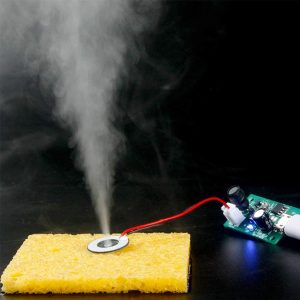

This 5V USB Ultrasonic Mist Maker Fogger Atomizer also called Ultrasonic Atomizer is a device that works by transposing high-frequency sound waves into mechanical energy that is transferred into a liquid thereby creating standing waves. This device has Low driving voltage, low power, low impedance, stable waveform, high conversion efficiency, round ring atomizer plate, middle spray, 5um ultra-fine spray aperture, 740 ultra-dense spray holes. The surface of the atomizing sheet adopts an oxidation resistant silver layer to protect the coating process to give it long life. It also Adopts environmentally friendly electronic components.

Specifications:

• Product name: 5V USB Ultrasonic Mist Maker Fogger Atomizer
• Voltage: DV 5V
• Current: 300mA
• Power: 2W
• Frequency: 110KHz

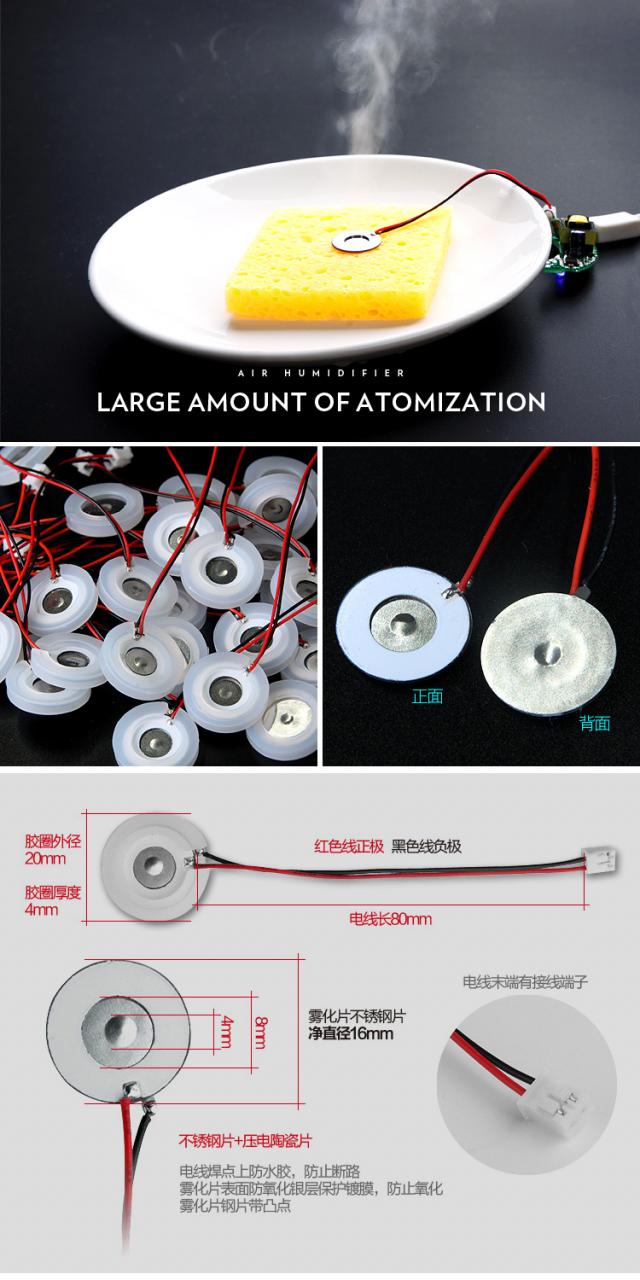

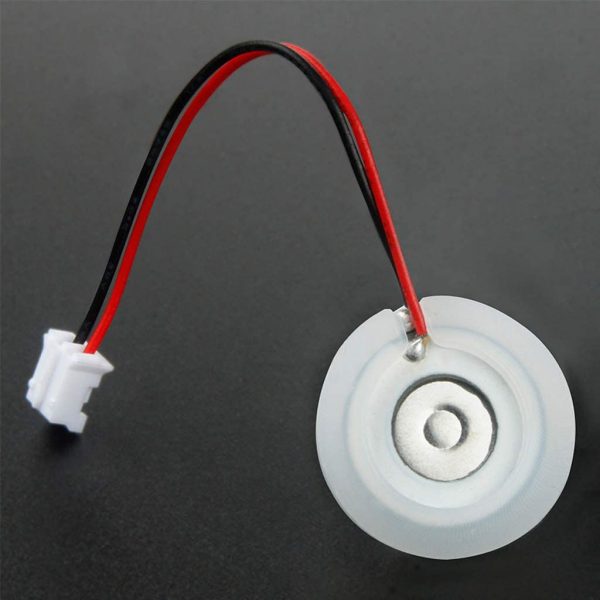

• Steel sheet diameter: About 16 mm
• Silicone ring outer diameter: About 20 mm
• Wire length: About 8 cm
• Size: approx. 46 *20*17mm/1.81*0.79*0.67″
