WCS1800 霍爾電流檢測模組 Hall Current Sensor 35A 短路/過流保護模組

描述

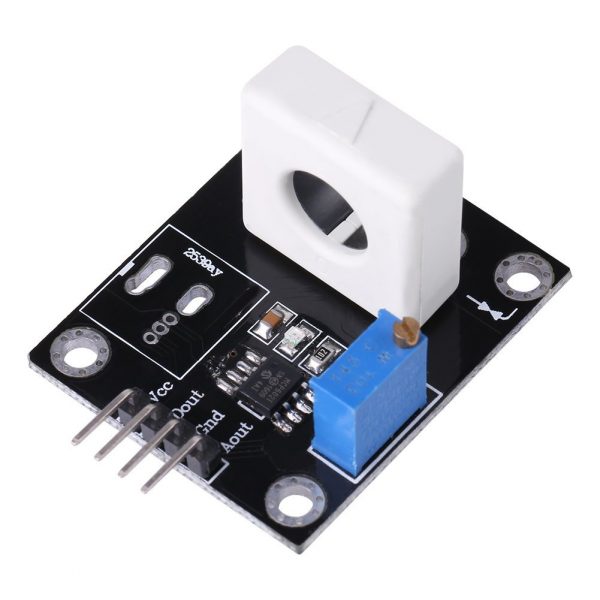

WCS1800 霍爾電流檢測模組 Hall Current Sensor 35A 短路/過流保護模組

WCS1800 霍爾電流檢測模組 應用：智能小車電機過流檢測、堵轉保護電流檢測、短路保護檢測、演示教學實驗等場合，方便二次開發

一、 尺寸：長37mmX寬31mmX高16.5mm
二、 主要晶片：LM393運放，WCS1800
三、 工作電壓：直流 DC5V

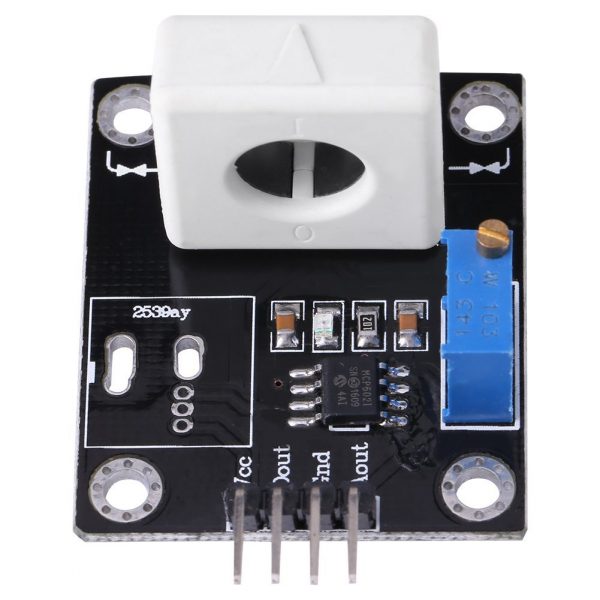

WCS1800 霍爾電流檢測模組 特點：

• 1、具有信號輸出指示燈；
• 2、電流檢測範圍寬DC±35A AC：25A；
• 3、電流檢測解析度60mV/A；
• 4、輸出過流信號指示；
• 5、過流信號設置臨界點可調，設置解析度1.5A；
• 6、帶安裝孔，方便固件安裝；
• 7、採樣電流轉換模擬信號輸出，可接ADC，TTL電平信號輸出，可接單片機IO口控制。

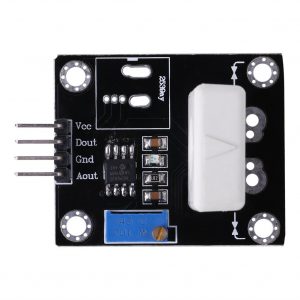

Hall Current Sensor WCS1800,35A Detection Short Circuit Overcurrent Protection Module

• This Hall current sensor with working voltage: DC 5V; Range of current detection DC±35A / AC 25A
• Practical current dectection with resolution of current detection 60mV/A
• Main chip: LM393 operational amplifier, WCS1800
• Critical point of flow signal set is adjustable, setting resolution 0.5A
• Designed with signal output indicator light, output over current signal indication and mounting holes for convenient installation

Main chip: LM393 operational amplifier, WCS1800
Working voltage: DC 5V; Range of current detection DC±35A / AC 25A
Designed with signal output indicator light, output over current signal indication.
Over current signal set threshold value is adjustable, set resolution 1.5A.
Designed with mounting holes for convenient installation.
Sampling current convert analog signal output, can connect to ADC, TTL level signal output and  IO port of SCM.
Widely used for smart car motor over-current detection, stall protecting current detection, short circuit protecting detection, teaching experiment, etc, convenience for secondary development.

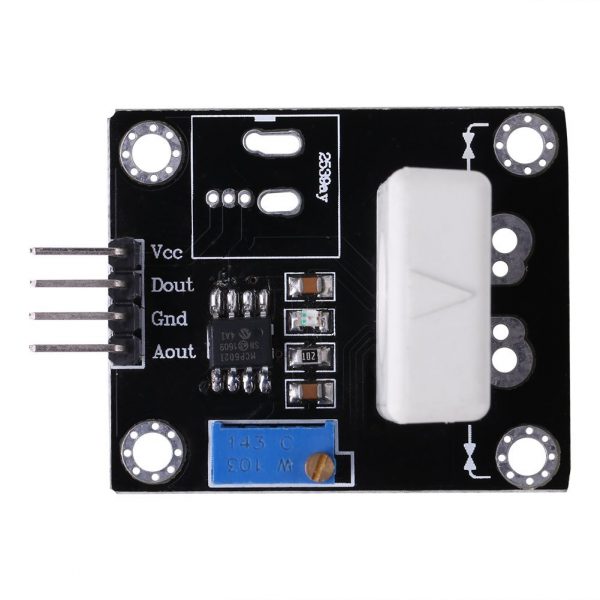

Specifications:

Working Voltage: DC 5V

Current Detection Range: DC±35A;
Current Detection Resolution: 66mV/A

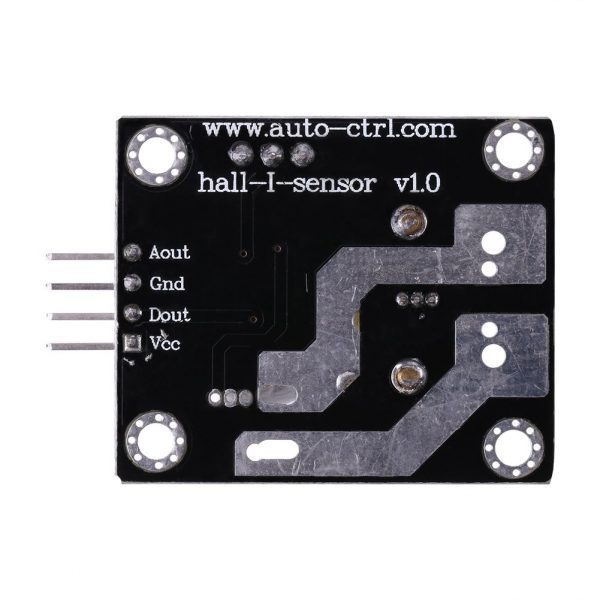

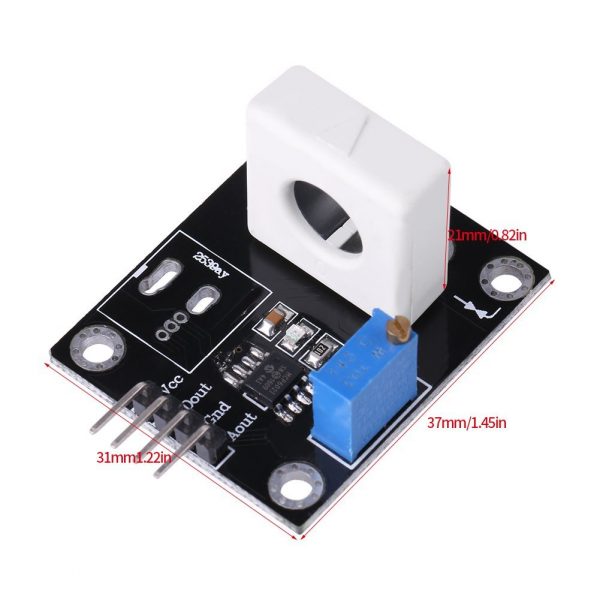

Size: 37*31*21mm/1.45*1.22*0.82″
