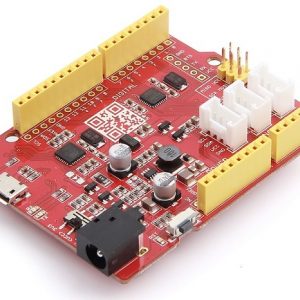

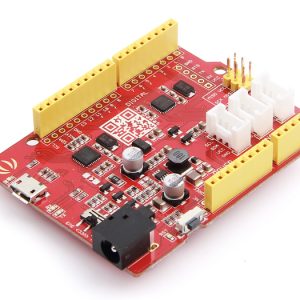

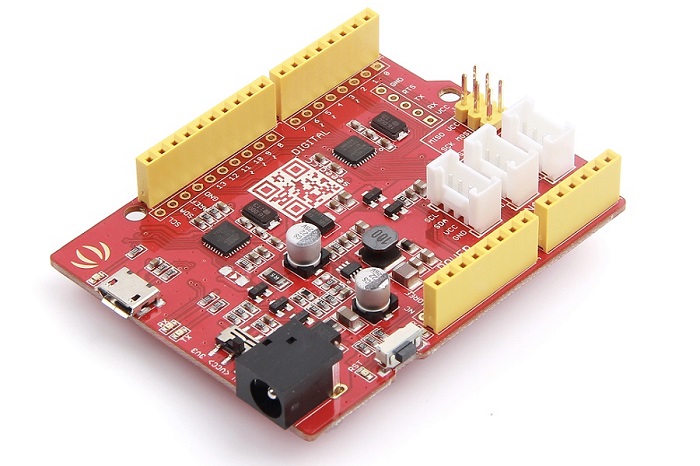

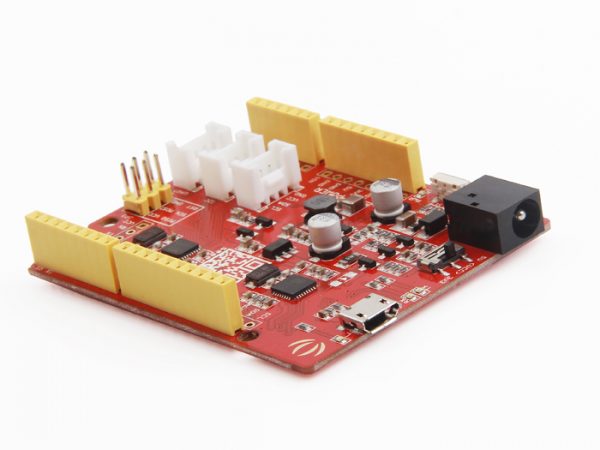

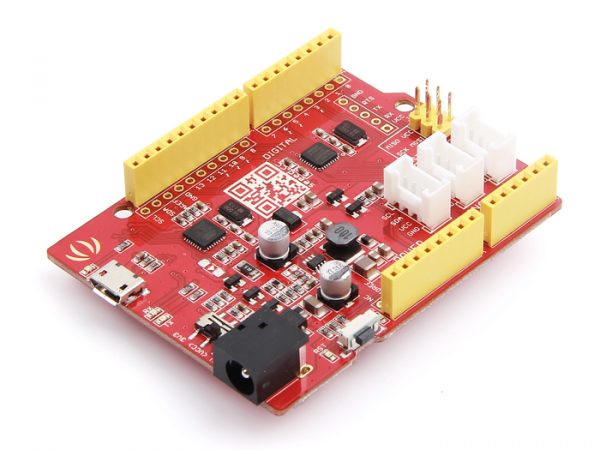

Seeeduino 開發板 V4.2 原廠品質 比副廠 Arduino uno r3 更好的選擇

描述

Seeeduino 開發板 V4.2 原廠品質 比副廠 Arduino uno r3  更好的選擇 銜接Grove 介面感測器免擴展板

Seeeduino 是一款兼容 Arduino 的開發板，基於 ATmga328P MCU。世界上有很多Arduinos和Arduino兼容的電路板，我們認為Seeeduino是最好的 Arduinos 之一，本開發板比一般副廠製造的的Arduino uno r3 相容板更加穩定，易於使用，甚至很好看。基於Arduino UNO 引導程序，並使用ATMEGA16U2作為Uart-to-USB轉換器，這意味著該板基本上可以像FTDI芯片一樣工作。您可以通過micro-USB電纜對電路板進行編程，如果您有Android手機，則可以輕鬆找到micro-ISB電纜。您也可以通過 DC 直流插孔輸入給開發板供電，7至15V可以接受。有一個開關可以選擇3.3V或5V的系統電源電壓，如果要將系統設置為3.3V以節省功耗，這非常有用。

最後，三個板載Grove接口可以讓您的主板輕鬆連接到Groves。想要創造出令人敬畏的東西，您不需要額外再添購任何 Grove 擴展版,就可以輕鬆與 Grove 系統的感測器或模組銜接了.

特徵

• ATmega328P 微控制器
• Arduino UNO 引導程序
• 14個數字I / O引腳（6個PWM輸出）
• 6個模擬輸入
• ISP標頭
• Arduino UNO-R3 Shield兼容
• 微型USB編程和電源
• 3個板載Grove連接器
• 3.3 / 5V系統操作電源開關

文件

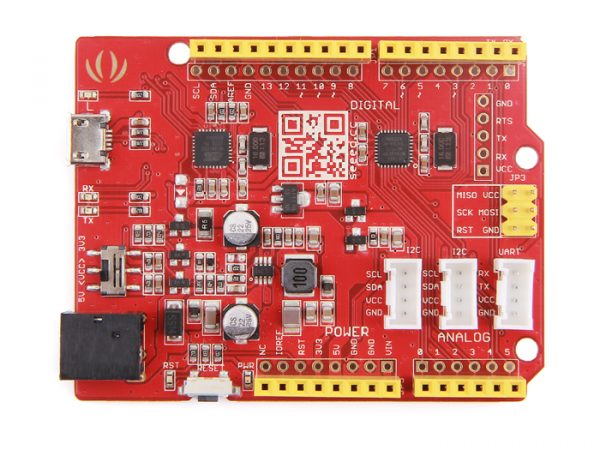

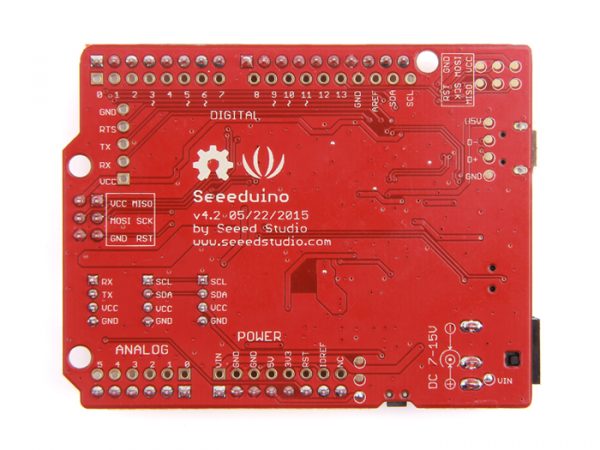

Seeeduino V4.2 is an Arduino-compatible board, which is based on ATmga328P MCU. There’re so many Arduinos and Arduino-compatible boards in the world, and we think that Seeeduino V4.2 is one of the best Arduinos, Seeeduino V4.2 is much more stable, easy-to-use and even good looking.

Seeeduino V4.2 is based the Arduino UNO bootloader, and with an ATMEGA16U2 as a Uart-to-USB converter, which means that the board can basically work like a FTDI chip. You can program the board via a micro-USB cable, if you have an Android phone, you can find a micro-ISB cable easily. Also you can power the board via a DC Jack input, 7 to 15V is acceptable. There’s a switch to choose the system supply voltage, 3.3V or 5V, which is very useful if you want to set the system to 3.3V to save power.
Finally, the three on-board Grove interface can make your board connect to Groves easily. Want to make something awesome, maybe just a Seeeduino V4.2 and some Groves is enough.

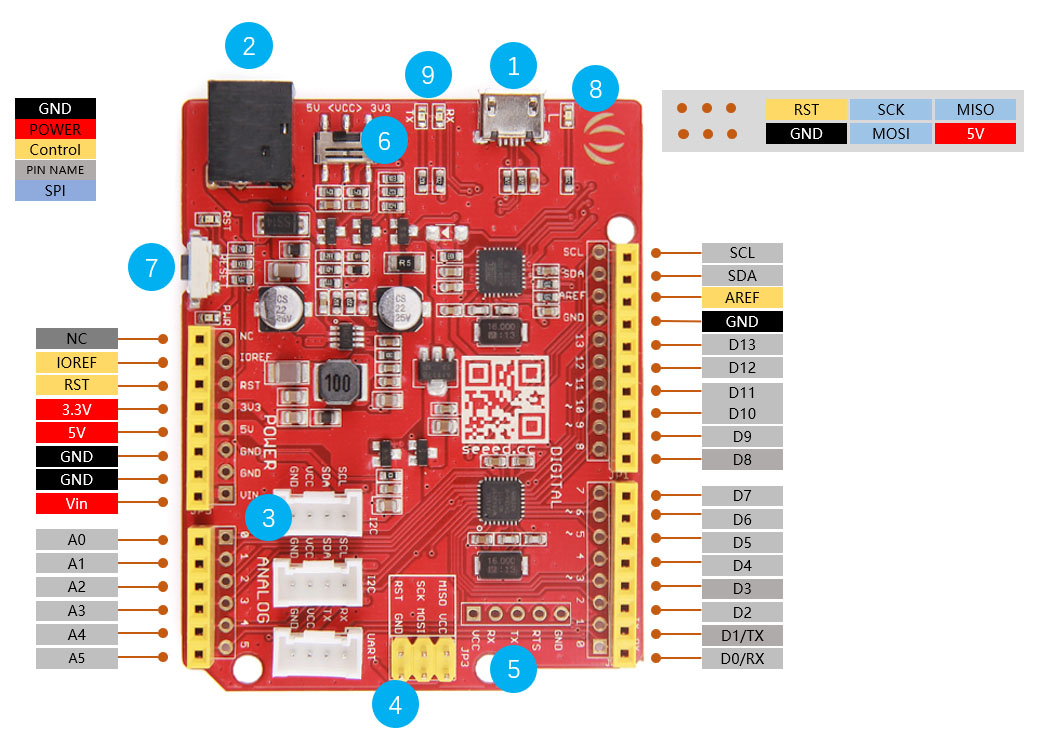

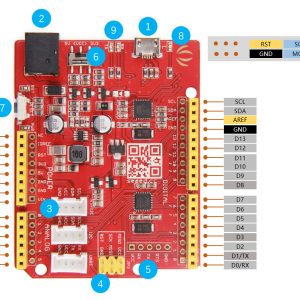

Features

• ATmega328P microcontroller
• Arduino UNO bootloader
• 14 Digital I/O Pins (6 PWM outputs)
• 6 Analog Inputs
• ISP Header
• Arduino UNO-R3 Shield Compatible
• Micro USB programming and power supply
• 3 on-board Grove connectors
• 3.3/5V system operation power switch

Technical Details

Dimensions	115mm x 78mm x 25mm
Weight	G.W 41g
Battery	Exclude
3 on-board Grove connectors
DC Current per I/O Pin	40 mA
DC Jack Input	7v-12v
Flash Memory	32 KB
RAM	2 KB
EEPROM	1 KB
Clock Speed	16 MHz

Part List

Seeeduino V4.2

1
