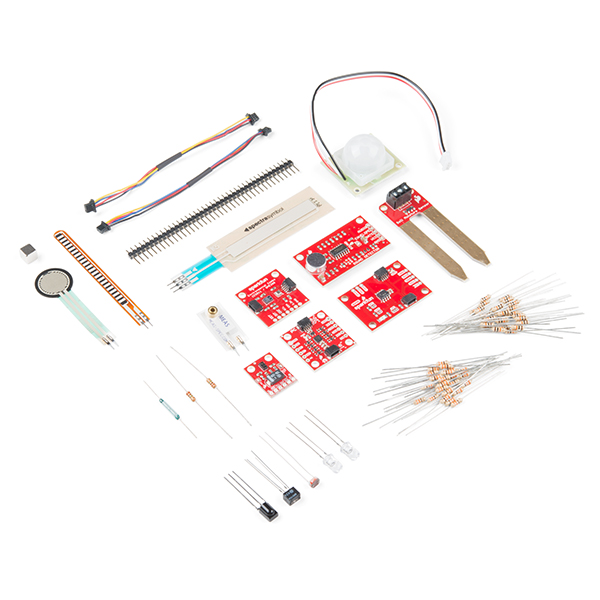

SparkFun Sensor Kit 高階感測器入門學習套件組  美國 SparkFun 原裝進口

SparkFun Sensor Kit 高階感測器入門學習套件組, 您是否對各種傳感器有很好的了解，或者在項目中需要各種傳感器？SparkFun傳感器套件包括一個幾乎可以完成所有工作的傳感器。借助該套件中的所有組件，您將能夠感知手勢，濕度，溫度，運動，觸摸，聲音，高度，加速度等！這些是每個類別中我們最喜歡的一些傳感器。但是，等等，還有更多！現在，SparkFun傳感器套件包括我們的多個傳感器板，這些板具有Qwiic Connect系統，可快速進行原型製作！

SparkFun Sensor Kit 高階感測器入門學習套件組

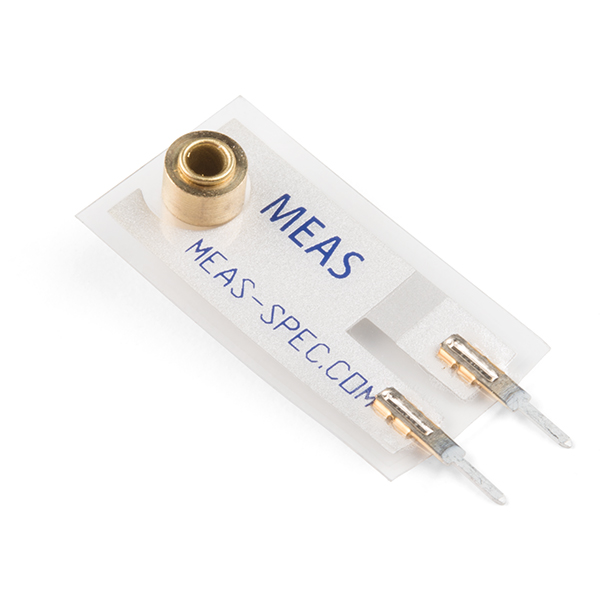

• 大型壓電振動傳感器-具有質量 -能夠感應振動，觸摸，震動等的柔性薄膜。當薄膜來回移動時，會產生交流電，其電壓最高為±90。
  簧片開關 -感應磁場，是一種出色的非接觸式開關。
• 0.25英寸磁鐵方形 -與簧片開關配合使用效果很好。將磁鐵嵌入毛絨動物中或盒子內，可以為簧片開關創建隱藏的致動器。

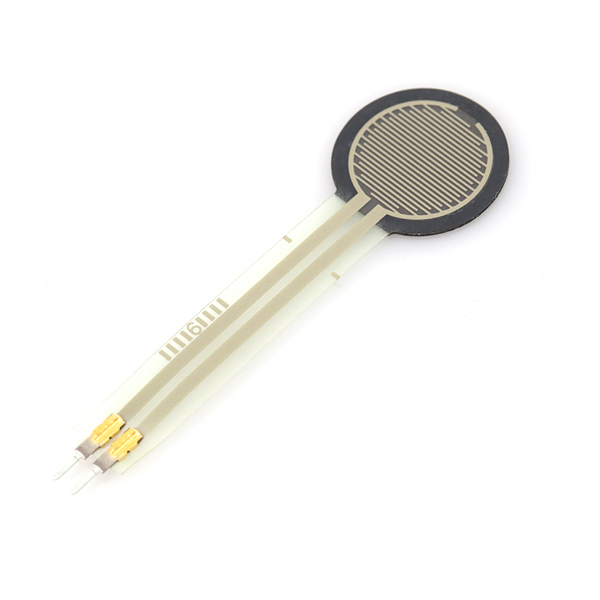

• 0.5“力感應電阻器 -直徑感應面積為0.5”的力感應電阻器。非常適合感測壓力（即，是否被擠壓）。
• PIR運動傳感器 -具有模擬接口的易於使用的運動檢測器。用5-12VDC為它供電，任何動靜都會提醒您。
• 微型光電管-光電管將根據曝光量來改變其電阻。從亮處的1kΩ到黑暗處的10kΩ不等。
• QRD1114光學探測器/光電晶體管 -多合一紅外發射器和探測器。是感應黑白過渡的理想選擇，或可用於檢測附近的物體。

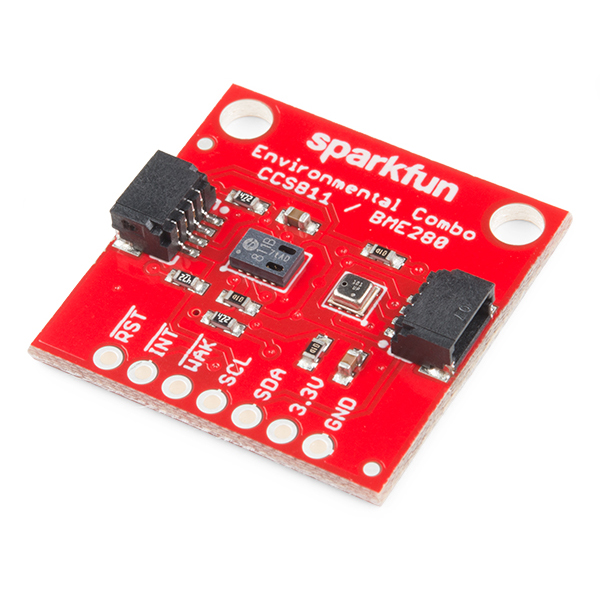

• SparkFun環境組合突破-CCS811 / BME280（Qwiic） -通過I 2 C輸出提供大氣壓，濕度，溫度，TVOC和等效的CO2（或eCO2）水平

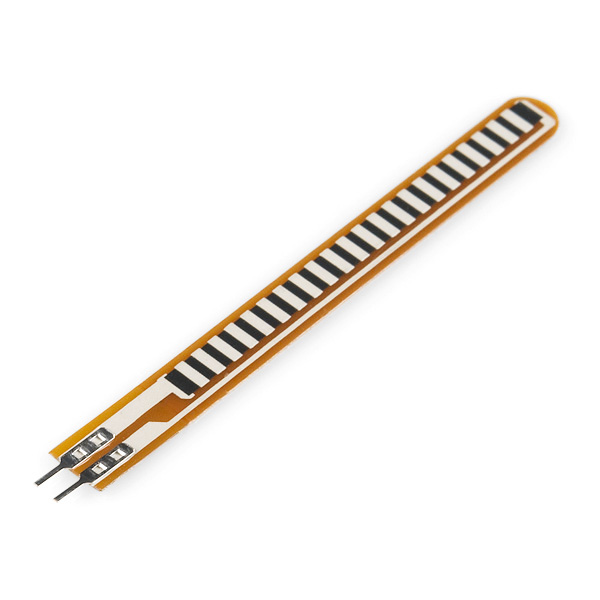

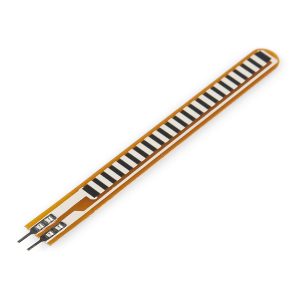

• 彎曲傳感器 -彎曲傳感器時，傳感器兩端的電阻會增加。用於感應運動或定位

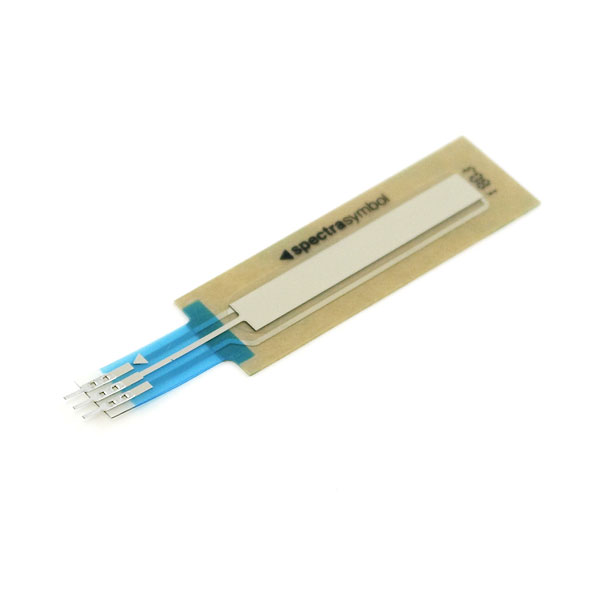

• SoftPot-這些是非常薄的可變電位器。通過沿條帶按壓不同的位置，可以改變電阻。

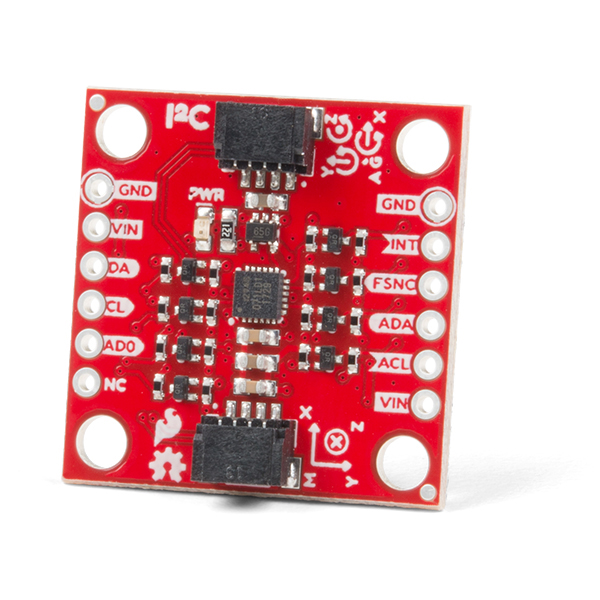

• SparkFun 9DoF IMU突破-ICM-20948（Qwiic） -該芯片提供3軸加速度計，3軸陀螺儀和3軸磁力計。通過I 2 C，Qwiic或SPI 連接此板，並開始使用三個傳感器之一或將三個傳感器一起使用以確定3D方向。

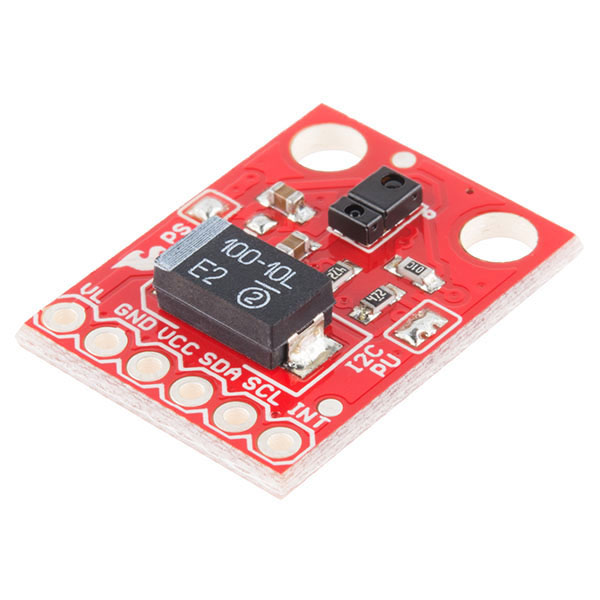

• RGB和手勢傳感器-APDS-9960-此開發板可完成所有操作。您可以測量環境光或顏色以及檢測接近度並在I 2 C上進行手勢感測。

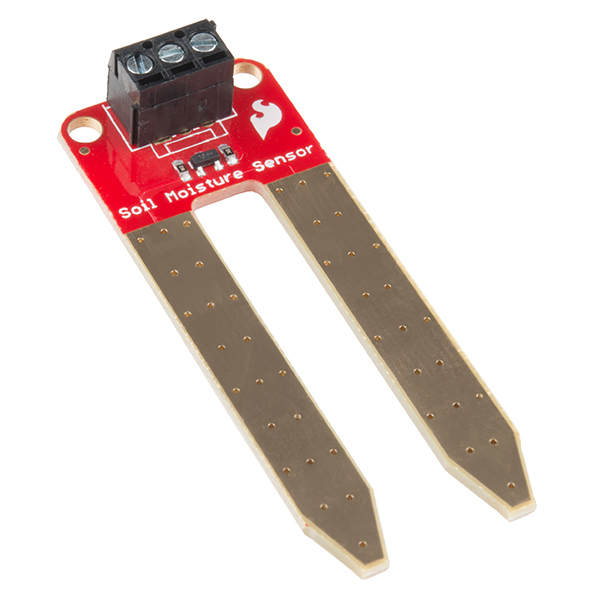

• 土壤濕度傳感器（帶螺絲端子）-是否想知道您的工廠是否需要水？該傳感器根據土壤的電阻輸出模擬信號。由於水俱有導電性，因此土壤水分將反映在土壤電阻中。

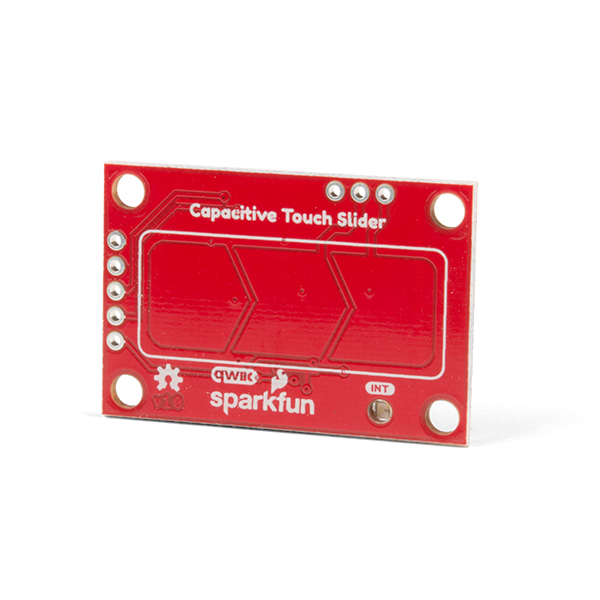

• SparkFun電容式觸摸滑塊-CAP1203（Qwiic） -此小板可作為非機械按鈕使用。使用板上的三個打擊墊或連接您自己的輸入，以實現無移動部件的出色觸摸按鈕或滑塊。

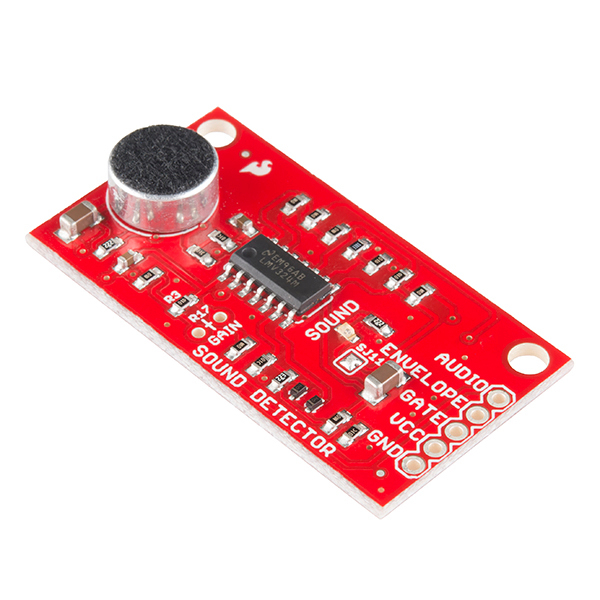

• 聲音檢測器 -是否需要知道某個區域是否有噪音？該板不僅可以告訴您，還可以輸出幅度以及完整的音頻信號。
• 紅外接收器二極管 -這種簡單的紅外接收器將檢測來自標準紅外遙控器或套件中包含的紅外二極管的紅外信號。
• 紅外二極管 -該LED可以處理940-950nm紅外光譜中的高達50mA的電流和輸出。用於發送信號與隨附的紅外接收器二極管通話，或僅關閉鄰居的電視。
• 電阻10K歐姆1/4瓦PTH-20包（粗線） -1/6瓦，+ /-5％公差PTH電阻。這些10KΩ電阻通常用於麵包板和穿孔板，具有出色的上拉，下拉和限流器。
• 電阻1.0M歐姆1/4瓦PTH-兩個1/4瓦，+ /-5％公差PTH電阻。常用於麵包板和穿孔板
• 電阻330歐姆1/4瓦PTH電阻-20包（粗引線） -1/6瓦+/- 5％公差的PTH電阻。這些330Ω電阻通常用於麵包板和穿孔板，是LED的出色限流電阻。
• Qwiic電纜-100毫米 -使用這些電纜最多可連接套件中的三個Qwiic板。
• 斷開接頭連接器-直頭-將這些銷釘焊接到隨附板上的任何突破口上，以在麵包板上製作原型。

傳感器套件資源中心

2016年5月5日

原廠技術文件與範例

• 傳感器套件資源中心

• Parts Wishlist
• Resource Hub

SparkFun Sensor Kit

Do you have a good understanding of various sensors or need a variety of them for a project? The SparkFun Sensor Kit includes a sensor for just about every job. With everything included in this kit, you’ll be able to sense gesture, humidity, temperature, motion, touch, sound, altitude, acceleration and more! These are some of our favorite sensors from each category. But wait, there’s more! The SparkFun Sensor Kit now includes several of our sensor boards that feature the Qwiic Connect System for rapid prototyping!

This version of the kit has received a complete overhaul! Check out the Includes section above for a complete list of what is included in this kit to find out what has changed.

This huge assortment of sensors makes an amazing gift for that very special electronics enthusiast in your life!

INCLUDES

• Large Piezo Vibration Sensor – With Mass – A flexible film able to sense for vibration, touch, shock, etc. When the film moves back and forth an AC wave is created, with a voltage of up to ±90.
• Reed Switch – Senses magnetic fields, makes for a great non-contact switch.
• 0.25″ Magnet Square – Plays nicely with the reed switch. Embed the magnet into stuffed animals or inside a box to create a hidden actuator to the reed switch.
• 0.5″ Force Sensitive Resistor – A force-sensing resistor with a 0.5″ diameter sensing area. Great for sensing pressure (i.e., if it’s being squeezed).
• PIR Motion Sensor – Easy-to-use motion detector with an analog interface. Power it with 5-12VDC, and you’ll be alerted of any movement.
• Mini Photocell – The photocell will vary its resistance based on how much light it’s exposed to. Will vary from 1kΩ in the light to 10kΩ in the dark.
• QRD1114 Optical Detector/Phototransistor – An all-in-one infrared emitter and detector. Ideal for sensing black-to-white transitions or can be used to detect nearby objects.
• Altitude/Pressure Sensor – MPL3115A2 Breakout – Low-power, high-precision barometric pressure sensor with I2C output.
• Flex Sensor – As the sensor is flexed, the resistance across the sensor increases. Useful for sensing motion or positioning
• SoftPot – These are very thin variable potentiometers. By pressing on various positions along the strip, you vary the resistance.
• 9 Degrees of Freedom IMU Breakout – LSM9DS1 – This chip provides a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer. Connect this board over I2C or SPI and get started using one of the three sensors or using all three together to determine 3D orientation.
• RGB and Gesture Sensor – APDS-9960 – This board does a little bit of everything. You can measure ambient light or color as well as detect proximity and do gesture sensing all over I2C.
• Humidity and Temperature Sensor – Si7021 – A tiny (0.6″x0.6″) board that will provide humidity readings as well as very accurate temperature readings. This I2C board is great for weather applications.
• Soil Moisture Sensor (with screw terminals) – Ever wonder if your plant needs water? This sensor outputs an analog signal based on the resistance of the soil. Since water is conductive, the soil water content will be reflected in the soil resistance.
• Capacitive Touch Breakout – This little board acts great as a non-mechanical button. Use the pad on the board or connect your own input for a great touch button with no moving parts.
• Sound Detector – Ever need to know if there is noise in an area? This board will not only tell you, but it will also output amplitude as well as the full audio signal.
• IR Receiver Diode – This simple IR receiver will detect an IR signal coming from a standard IR remote control or the IR diode included in the kit.
• IR Diode – This LED can handle up to 50mA of current and outputs in the 940-950nm IR spectrum. Use to send signal to talk to the included IR receiver diode or just turn off your neighbor’s TV.
• Resistor 10K Ohm 1/6th Watt PTH – 20 Pack – 1/6th Watt, +/- 5% tolerance PTH resistors. Commonly used in breadboards and perf boards, these 10KΩ resistors make excellent pullups, pulldowns and current limiters.
• Resistor 1.0M Ohm ¼ Watt PTH – Two ¼th Watt, +/- 5% tolerance PTH resistors. Commonly used in breadboards and perf boards
• Resistor 330 Ohm 1/6W PTH – 20 pack – 1/6 Watt +/- 5% tolerance PTH resistors. Commonly used in breadboards and perf boards, these 330Ω resistors make excellent current-limiting resistors for LEDs.
