Raspberry Pi Zero W Barebones Kit 準系統套件

描述

Raspberry Pi Zero W Barebones Kit 準系統套件

Raspberry Pi Zero W 具備藍芽和WIFI

Raspberry Pi Zero W 的基本規格與 Raspberry Pi Zero 相同，配備博通（Broadcom）出產的 ARM 架構的 BCM2835 處理器（1GHz）、512MB 的記憶體。提供迷你 HDMI 接孔、Micro-USB On-The-Go 接孔、微型 USB 電源接孔、HAT 相容的 40 針接頭；在無線方面，採用的是與 Raspberry Pi 3 相同的賽普拉斯 CYW43438 無線晶片，以提供 802.11n 無線局域網和藍牙 4.0 連接。

The Pi Zero w Barebones kit is the most basic essentials. You can easily assemble with your Pi Zero w.
Part List

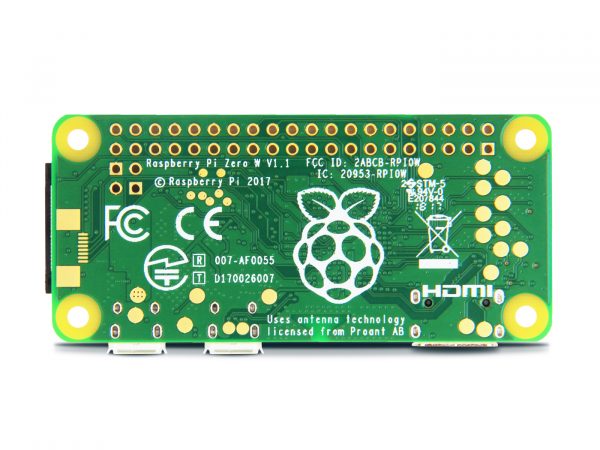

• 1 x Raspberry Pi Zero w – The Raspberry Pi Zero W has all the functionality of the original Pi Zero but with added connectivity, consisting by 802.11 b/g/n wireless LAN, Bluetooth 4.1 and Bluetooth Low Energy (BLE).
• 1 x Mini HDMI OTG Cable – The mini HDMI to standard HDMI jack.
• 1 x Micro USB OTG Cable – The micro USB to standard Type A device, you can connect Wi-Fi dongle, mouser, touchpad, etc with the Pi Zero
• 1 x 2×20 Pin Male header – Solder this in to plug in Pi HATs, GPIO cables, etc as you would into a normal Pi.
• 1 x 2×20 Pin Female header – Solder this into GPIO port position, make the best of GPIO port.

Features

• 1GHz, Single-core CPU
• 512MB RAM
• Mini-HDMI port
• Micro-USB OTG port
• Micro-USB power
• HAT-compatible 40-pin header
• Composite video and reset headers
• CSI camera connector (v1.3 only)
• 802.11 b/g/n wireless LAN
• Bluetooth 4.1
• Bluetooth Low Energy (BLE)



Technical Details

Dimensions	90mm x 35mm x 27mm
Weight	G.W 55g    N.W 49g
Battery	Exclude

Part List

Raspberry Pi Zero w	1
Mini HDMI to HDMI adapter	1
Micro USB to USB Female	1
2×20 Pin Male header	1
2×20 Pin Female header	1
